Yaris L4-1.5L (1NZ-FE) (2007)
^
Dispose of used oil and used oil filters at designated disposal sites in order to preserve the environment.
1. DRAIN ENGINE OIL
(a)
Remove the oil pan drain plug and drain the engine oil.
(b) Clean the oil pan drain plug and install it with a new gasket.
Torque: 38 N*m (382 kgf*cm, 28 ft.*lbf)

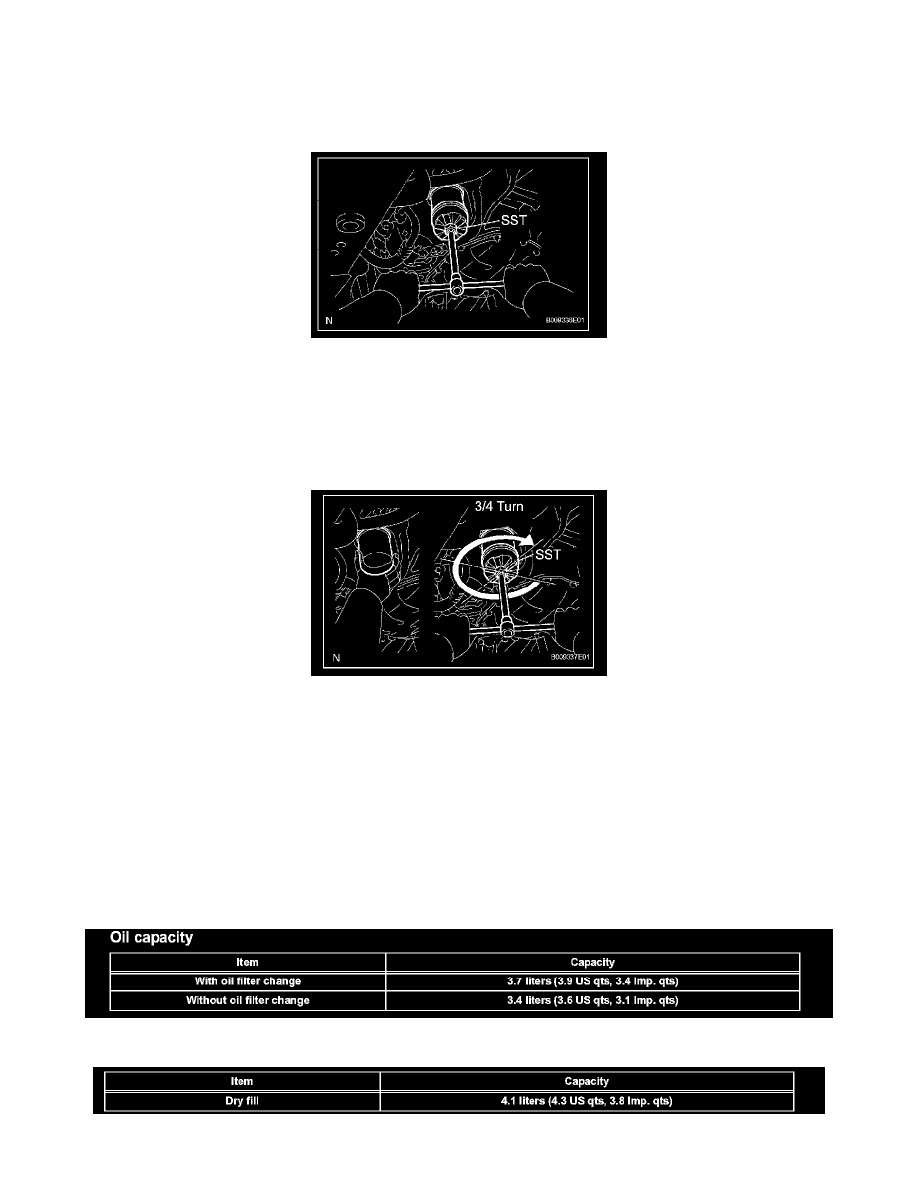

2. REMOVE OIL FILTER SUB-ASSEMBLY
(a)
Using SST, remove the oil filter.
SST 09228-06501
3. INSTALL OIL FILTER SUB-ASSEMBLY
(a)
Check and clean the oil filter installation surface.
(b) Apply clean engine oil to the gasket of a new oil filter.
(c)
Gently screw the oil filter into place, then tighten it until the gasket comes into contact with the seat.
(d) Using SST, tighten the oil filter.
SST 09228-06501
(1) Depending on the available workspace, choose from the following procedures.
If enough space is available, use a torque wrench to tighten the oil filter.
Torque: 13 N*m (133 kgf*cm, 9.5 ft.*lbf)
If the available workspace is insufficient to use a torque wrench, tighten the oil filter a 3/4 turn by hand or use a common wrench.
4. ADD ENGINE OIL
(a)
Fill with new engine oil.
Oil Capacity (Part 1)
Oil Capacity (Part 2)
