2. CHARGE REFRIGERANT

SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)

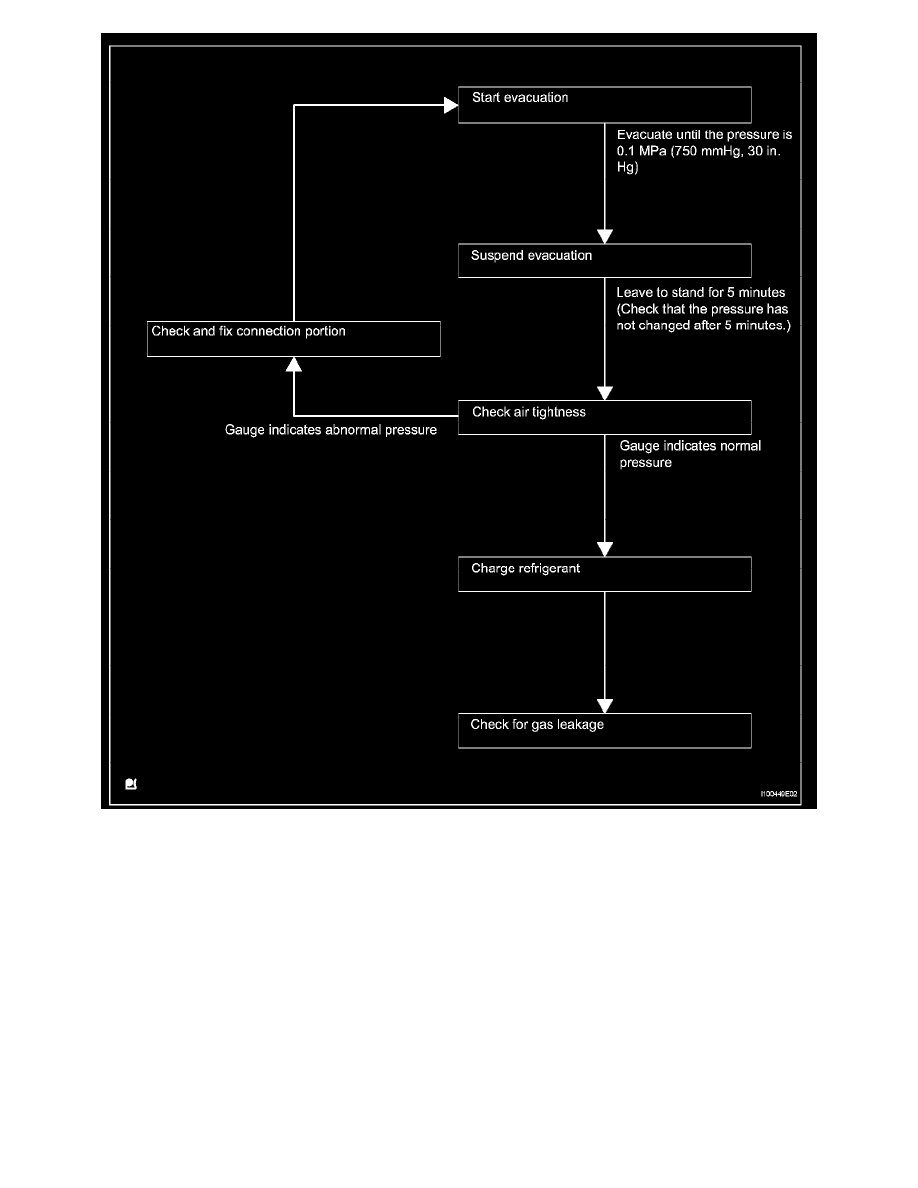

NOTE:  Charge refrigerant in accordance with equipment manual.

a. Perform vacuum purging using a vacuum pump.
b. Charge refrigerant HFC-134a (R134a).

Standard: 330 to 390 g (11.64 to 13.76 oz.)

NOTE:  Do not start the engine before charging it with refrigerant as the cooler compressor doesn't work properly without sufficient refrigerant.
This could cause the compressor to overheat.
