Yaris L4-1.5L (1NZ-FE) (2007)
/Page-887001.png)
Pressure Plate: Specifications
Pressure Plate

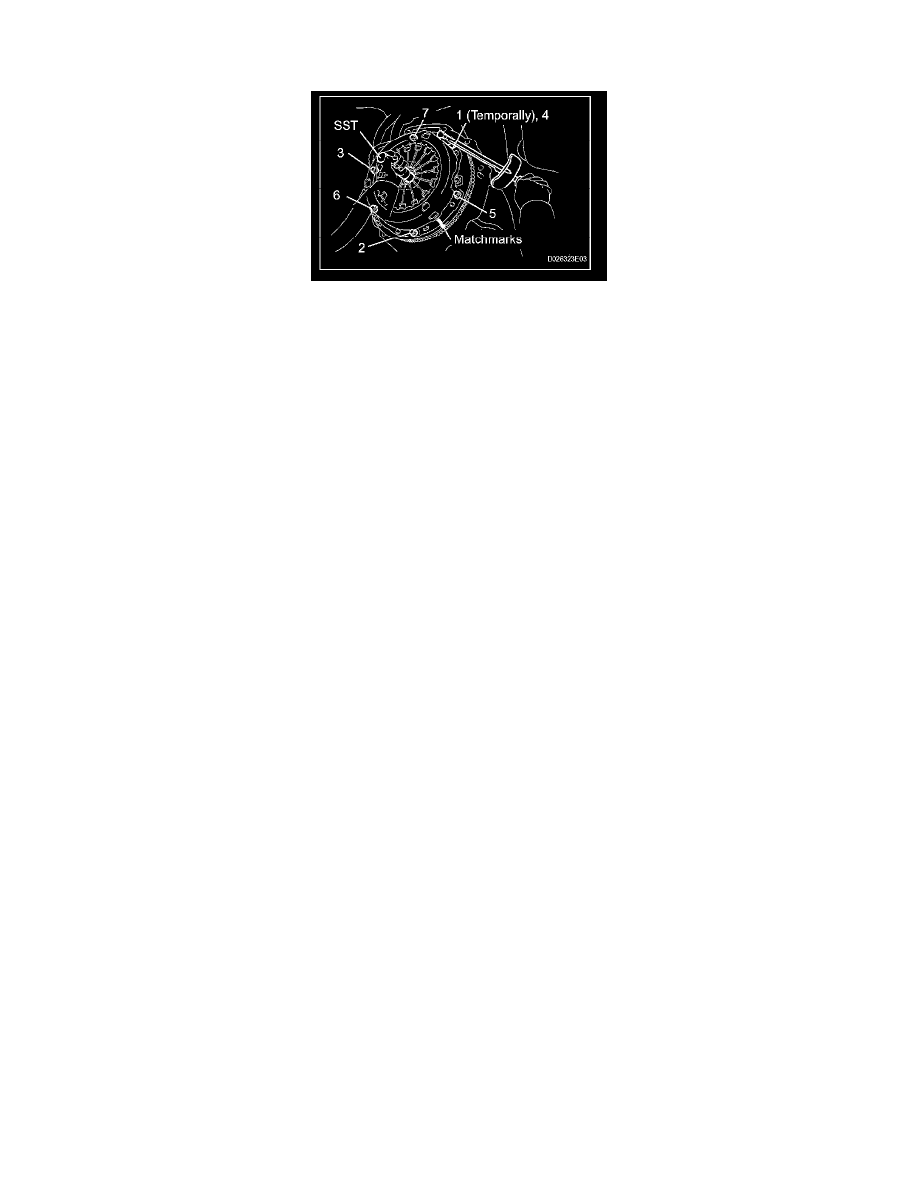

Align the matchmark on the clutch cover assembly with that on the flywheel sub-assembly.
Following the procedures shown in the illustration, tighten the 6 bolts in order, starting with the bolt located near the knock pin at the top.
Torque ........................................................................................................................................................................... 19 N*m (195 kgf*cm, 14 ft.*lbf)
HINT:
Following the order in the illustration, tighten the blots evenly one at a time.
Move SST up and down, right and left lightly after checking that the disc is in the center, and tighten the bolts.
SST 09301-00110
