Fuse Box, Replace (Central Electrics)

Make
Vauxhall
Model
Astra G
Section
Central Electrics › Repair Instructions › Fuse Box, Replace
Electrical Equipment and InstrumentsFuse Box, Replace

Fuse Box, Replace

  Remove

Multitimer – see operation "Multitimer, Remove and Install".

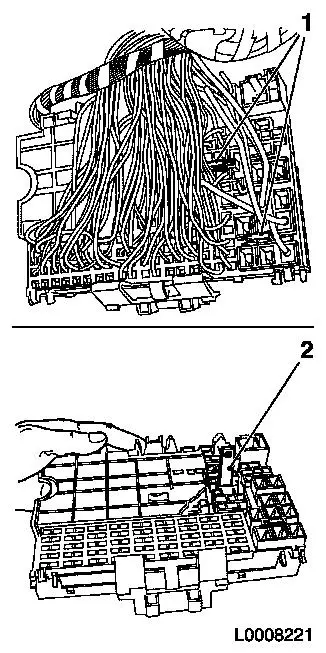

Unclip rear fuse box cover. Expose wiring harness (remove cable ties and insulating tape). Pull out retaining pins (1). Pull out all fuses and relays.

Note:   After releasing from the old fuse box, insert cable immediately into the new fuse box in order to prevent positioning errors.

Release cables one after the other from the old fuse box: MKM-923-1, for narrow lock opening, MKM-923-3, for contacts with double lock and MKM-923-5, for contacts with wide lock. Use Locking Tool KM-6128 to install the contacts in the new fuse box.

Note:   Before installing the plug contacts, slightly bend open locking tabs to ensure secure seating in the fuse box.

Insert KM-6128 (2) in new fuse box to enable the plugs to be inserted!

 Object Number: 2412038 Size: DEFAULT

  Install

Locking pins, remove KM-6128, secure wiring harness, insert fuses, rear fuse box cover, multitimer, function check.
