Battery Negative Cable Replacement (with Start/Stop
System)
Removal Procedure
3. |

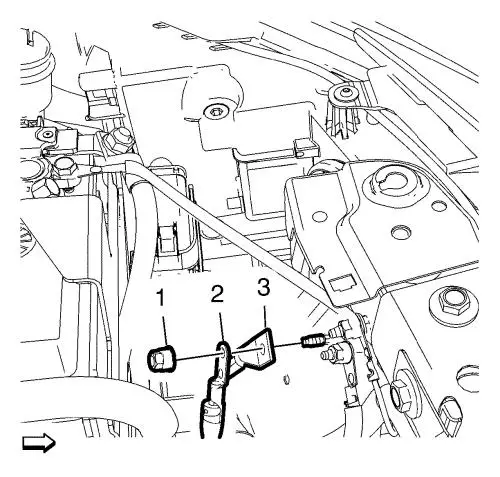

Remove the battery ground
cable nut (1). |
4. |
Remove the battery wiring
harness ground cable (2) and the battery negative cable (3).
|
5. |

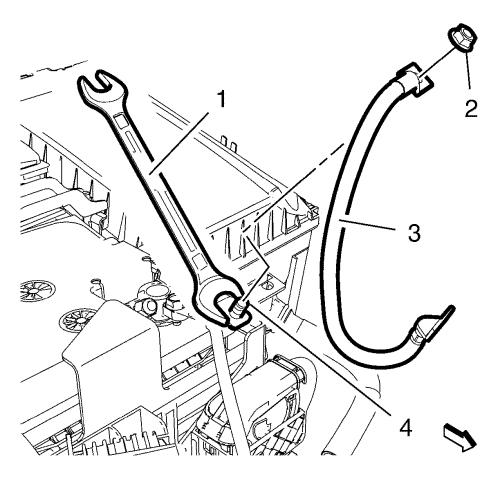

Install a open-end spanner (1)
to counterhold the battery sensor (4) as shown in the
graphic. |
6. |
Remove the battery negative
cable nut (2). |
7. |
Remove the battery negative
cable (3). |
Installation Procedure
1. |
Install the battery negative
cable (3). |
2. |
Install a open-end spanner (1)
to counterhold the battery sensor (4) as shown in the
graphic. |
3. |
Install the battery negative
cable nut (2) and tighten to 11 N·m (97 lb
in) . |
4. |
Install the battery negative
cable (3) and the battery wiring harness ground cable (2).
|
5. |
Install the battery ground
cable nut (1) and tighten to 9 N·m (80 lb
in) . |
|
