Engine Oil and Oil Filter Replacement
Removal Procedure
2. |
Place a drain pan below the
vehicle. |
3. |

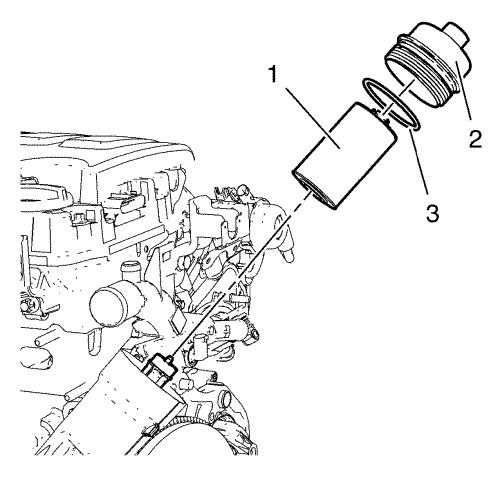

Remove the engine oil filter
cap (2) in compound with the engine oil filter cap seal ring (3)
and the oil filter element (1). |
5. |
Remove the oil pan drain plug
and allow the oil to drain into the drain pan. |
Installation Procedure
1. |
Clean the oil pan drain plug
thread in the oil pan. |
2. |
Install a NEW seal ring to the
oil pan drain plug. |
3. |
Install the oil pan drain plug
and tighten to 14 N·m (124 lb in) .
|
|
Note: Lubricate the
NEW oil filter cap seal ring with engine oil.
|
5. |
Install the engine oil filter
cap (2) in compound with a NEW engine oil filter cap seal ring (3)
and a NEW oil filter element (1). |
|
Caution: Over torquing the oil filter cap may cause damage to the
oil filter cap resulting in an oil leak. |
6. |
Tighten the engine oil filter
cap to 25 N·m (18 lb ft) . |
|
Caution: Using engine oils of any viscosity other than those
viscosities recommended could result in engine damage. |
|
Note: Do not overfill
the engine with engine oil.
|
8. |
Start the engine and allow it
to run until the oil pressure control indicator goes off.
|
9. |
Inspect the engine oil
level. |
11. |
Reset the service interval
indicator. |
|
