Oil Pan Cleaning and Inspection
| 1. |

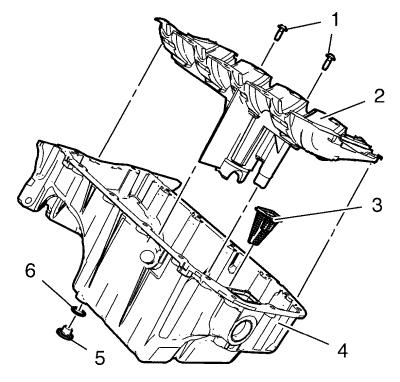

Remove the 2 oil pan baffle
bolts (1) and the oil pan baffle (2). |
| 2. |
Remove the oil pump screen
(3). |
| 3. |
Clean the oil pan (4). Remove
all the sludge and the oil deposits. |
| 4. |
Remove the oil pan drain plug
(5) and the oil pan drain plug seal (6). |
| 5. |
Inspect the thread of the oil
pan drain plug. |
| 6. |
Inspect the oil pan for
cracking near the pan rail and the transmission mounting
points. |
| 7. |
Inspect the oil pan for
cracking resulting from impact or flying road debris. |
| 8. |
Inspect the oil pan baffle and
oil pump screen. |
| 9. |
Repair or replace the oil pan
as necessary. |
|
