Exhaust Manifold Removal - 2.0L Diesel LBS, LBX, and LCD
Exhaust Manifold Removal (2.0L Diesel LBS, LBX, and LCD)
1.

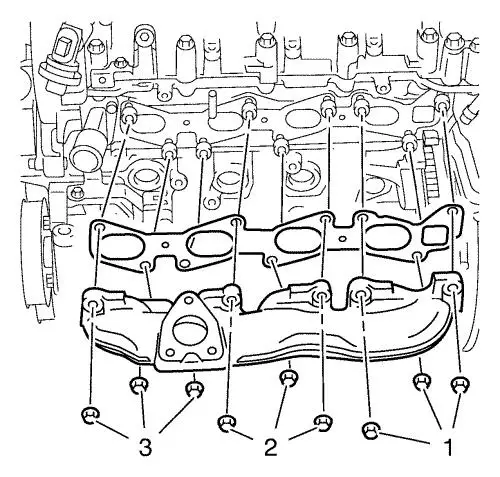

Remove the 9 exhaust manifold nuts (1, 2, 3).
2.
Remove the exhaust manifold.
3.
Remove the exhaust manifold gasket.
4.
Clean all of the gasket surfaces.
