Astra J

Belt Idler Pulley Installation - Pulley Side

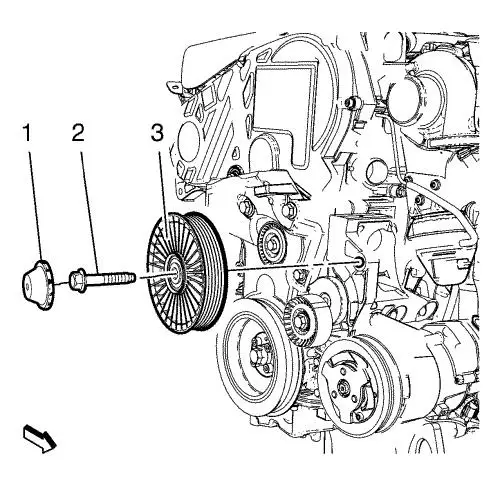

           2189660



1. Install the belt idler pulley (3).

Caution: Refer to Fastener Caution .
2. Install the belt idler pulley bolt (2) and tighten to 25 N·m (18 lb ft) .
3. Install the pulley cap (1).
