Timing Belt: Specifications
- Make
- Volkswagen
- Model
- Beetle
- Engine
- L4-1781cc 1.8L Turbo (APH)
- Year
- 1999
- Section
- Timing Belt › Specifications
MaintenanceSpecifications · page 1 of 4
/Page-327001.png)

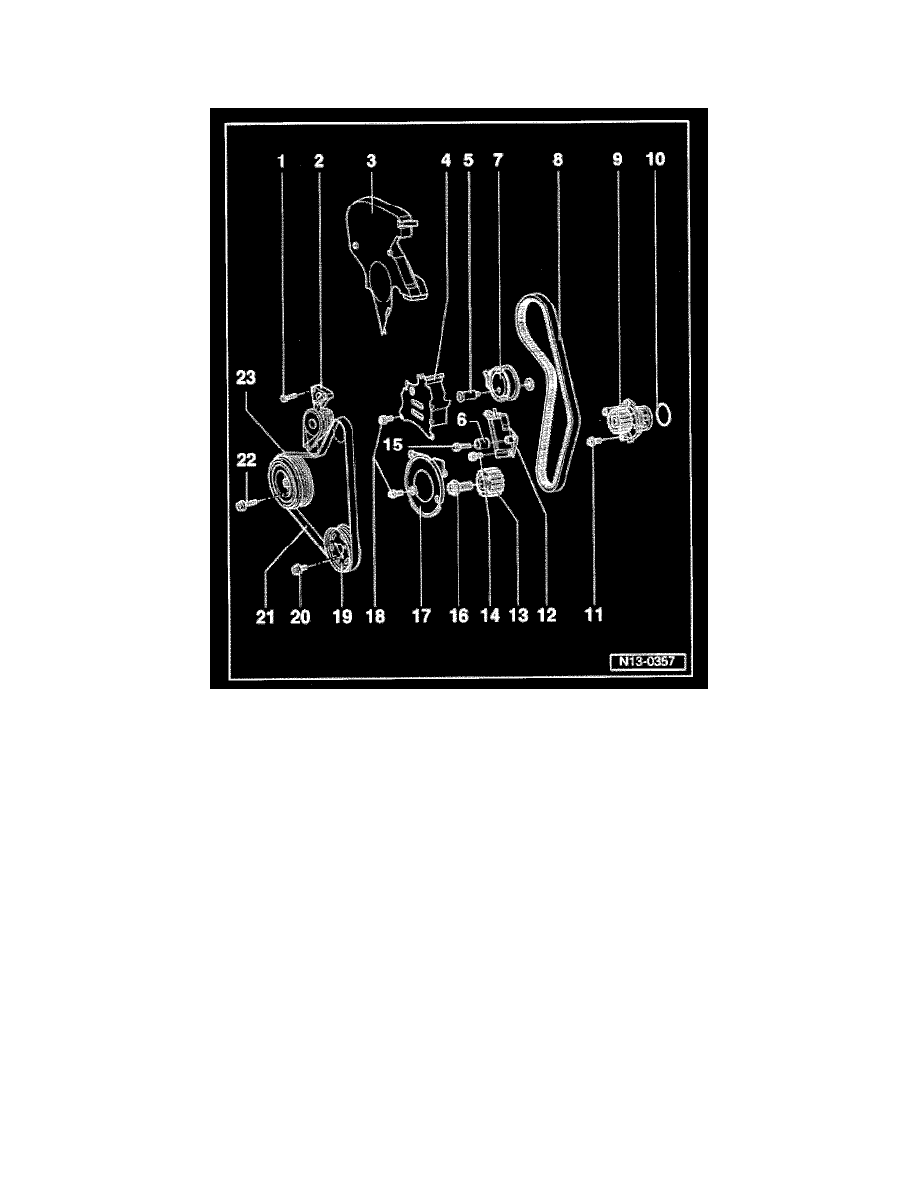

Timing Belt: Specifications
Toothed Belt
1. 25 Nm
2. Tensioning device for ribbed belt
Turn with open-end spanner to loosen ribbed belt
3. Toothed belt guard - upper part
4. Toothed belt guard - center section
5. 27 Nm
6. Idler wheel
7. Tensioning roller
8. Toothed belt
Mark direction of travel before removing
Check for wear
Do not kink
Removing, installing and tensioning, refer to Service and Repair - Procedure See: Service and Repair/Procedures
9. Coolant pump
10. 0-Ring
Always replace if damaged
11. 15 Nm
12. Tensioner for toothed belt
13. Crankshaft toothed belt sprocket
