Wiper Arm: Locations

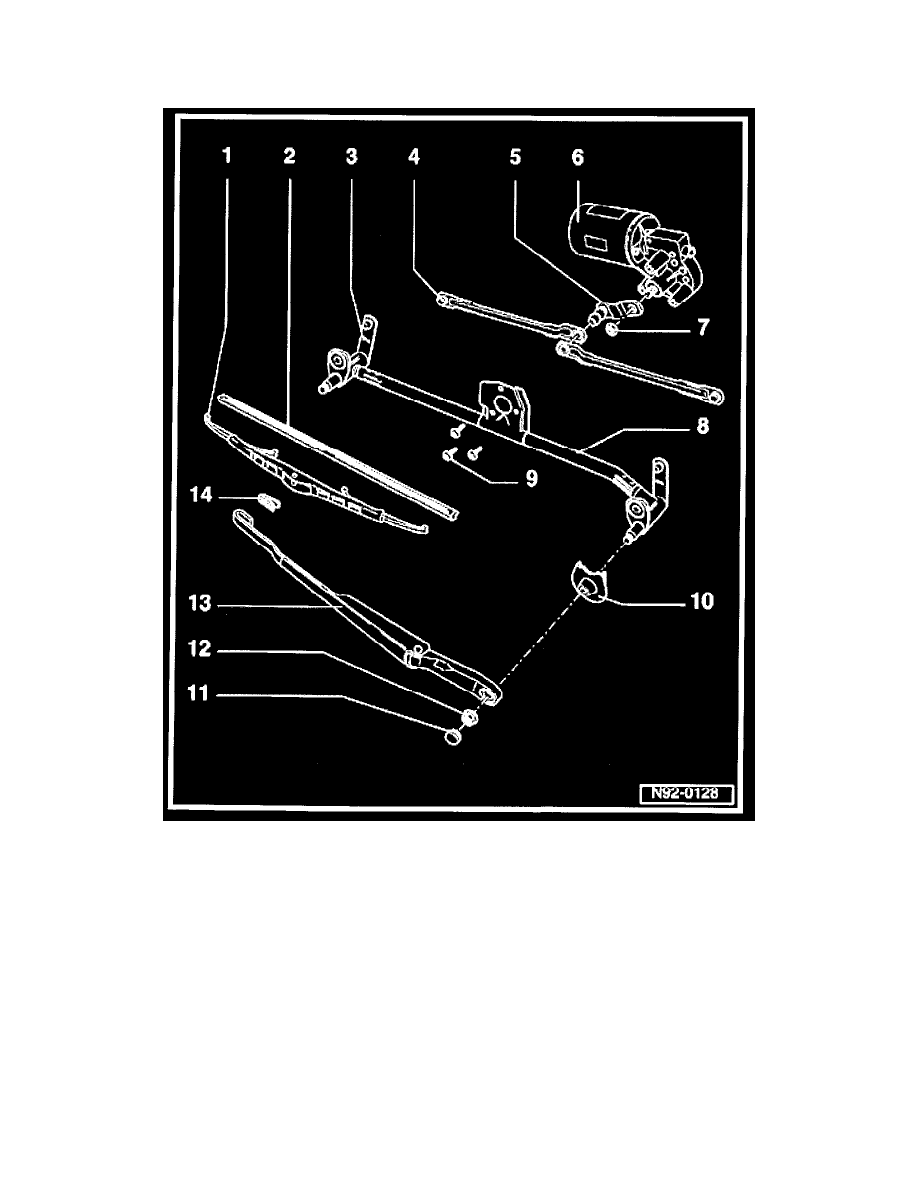

Windshield wiper system, assembly

CAUTION!
Before working on the electrical system:

-

Determine the correct coding for the anti-theft radio.

-

Switch ignition off.

-

Disconnect the battery Ground (GND) strap.

-

After reconnecting battery, re-code and check operation of the anti-theft radio.

1

-

Wiper blade
-

Adjusting rest position

2

-

Wiper rubber

3

-

Connecting lever

4

-

Connecting rod

5

-

Crank

6

-

Wiper motor

7

-

Hex nut M8
-

20 Nm (15 ft lb)

8

-

Wiper frame

9

-

Securing bolts M6
