Alignment (Alignment Specifications): Specifications
- Make
- Volkswagen
- Model
- Cabrio GLX
- Engine
- L4-2.0L (ABA)
- Year
- 2001
- Section
- Alignment › Specifications › Alignment Specifications
/Page-246001.png)

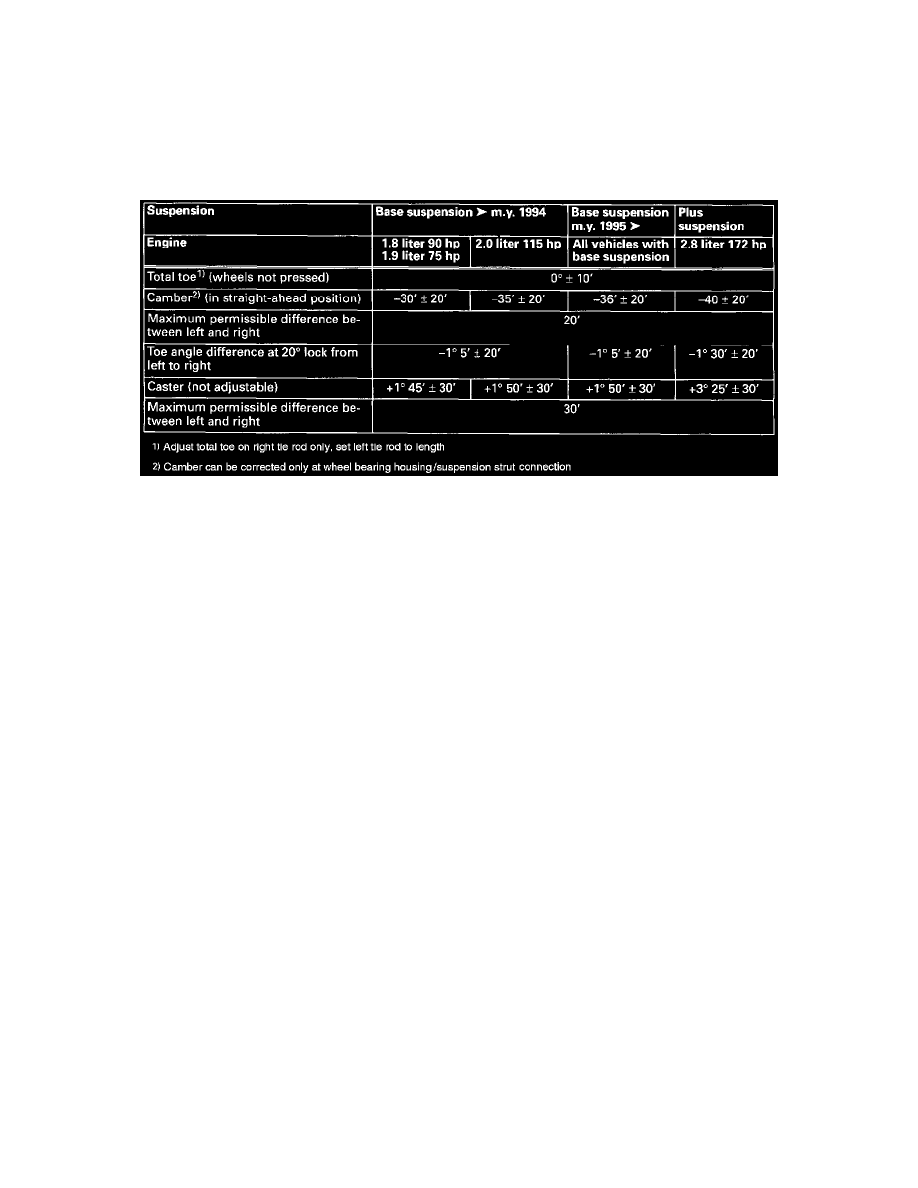

Alignment: Specifications
Alignment Specifications
Alignment Specs
Front Axle
Rear Axle
Camber ........................................................................................................................................................................................................... -1 30' ± 10'
Max Difference Between Right & Left ........................................................................................................................................................................ 20'
Total Toe (w/specified Camber) ........................................................................................................................................................................ +20' ± 10'
Max Deviation from Direction of Travel ..................................................................................................................................................................... 20'
