Volkswagen Workshop Manuals
Eos (1F7) V6-3.2L (BUB) (2008)
Steering and Suspension > Sensors and Switches - Steering and Suspension > Sensors and Switches - Suspension > Acceleration Sensor, Suspension Control > Component Information > Service and Repair > Left Front Body Acceleration Sensor > Page 5160
Acceleration Sensor: Service and Repair
Right Front Body Acceleration Sensor
Special tools, testers and auxiliary items required
‹› Torque wrench (V.A.G 1410)
Remove wiper arms.
Remove plenum chamber cover.
Release and disconnect the connector.

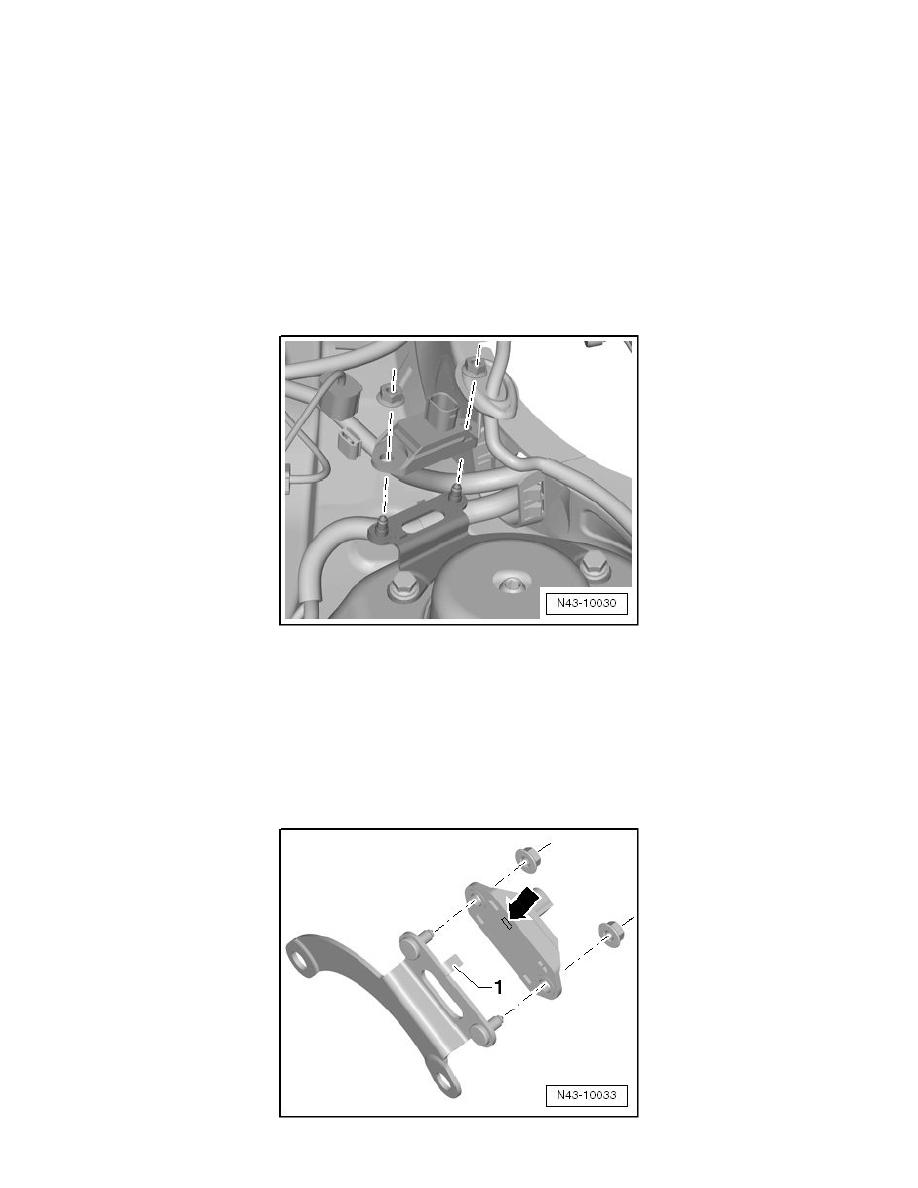

Remove the nuts and remove the right front body acceleration sensor (G342).
Installation is performed in the reverse order of removal. Observe the following when doing so:
Be sure to pay attention to the installation position of the right front body acceleration sensor retainer.
