Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

-

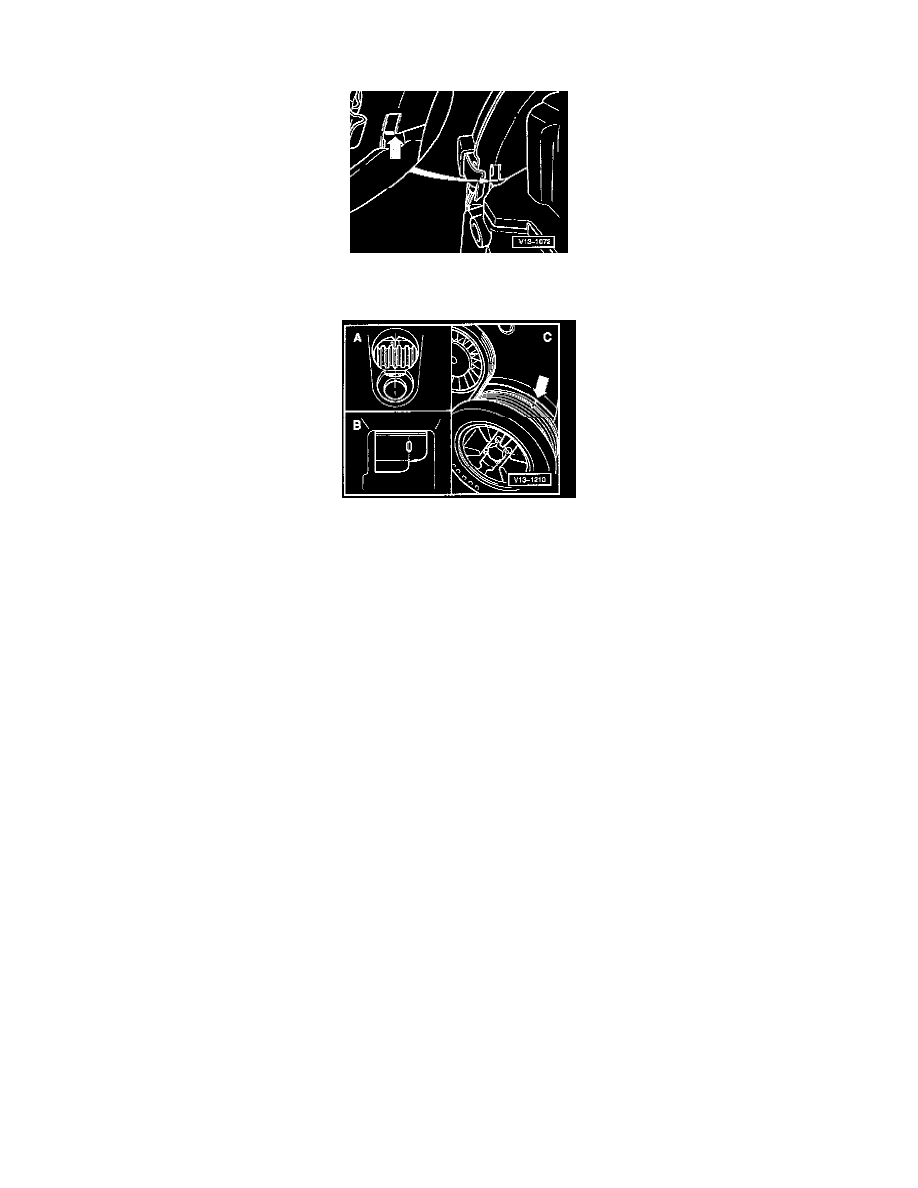

Set camshaft sprocket to marking TDC Cyl. 1. The marking on the camshaft sprocket must align with the mark on the rear toothed belt guard
-arrow-.

-

Set flywheel -A- or drive plate -B- to TDC No.1 cylinder.

For further information refer to Timing Belt : Service and Repair
See: Timing Belt/Service and Repair
