Coolant Line/Hose: Diagrams

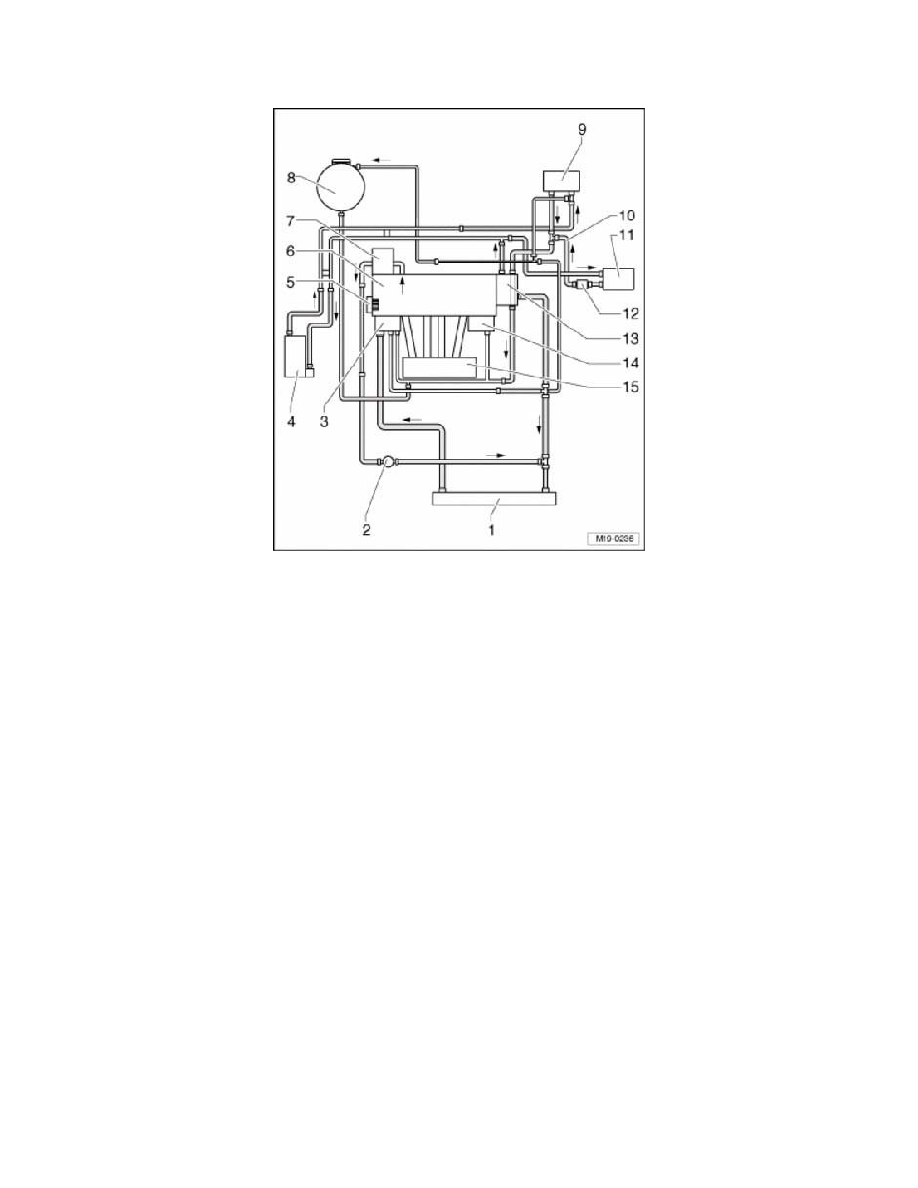

Coolant Hose Connection Diagram

1 -

Radiator

^

Removing and installing

^

Renew coolant after replacing

2 -

Coolant Pump V50

3 -

Coolant distribution housing

^

With thermostat

4 -

Auxiliary heater

^

Only with optional equipment

5 -

Coolant pump

6 -

Cylinder head/cylinder block

^

Replace coolant after replacing

7 -

Turbocharger

8 -

Expansion tank

^

With sealing cap

9 -

Heater core of heater

^

Replace coolant after replacing

10 -

Hose

^

Only with DSG transmission

11 -

Transmission oil cooler

^

Renew coolant after replacing

^

Only with DSG transmission

12 -

Bypass Thermostat

^

Only with DSG transmission
