Coolant Line/Hose: Diagrams

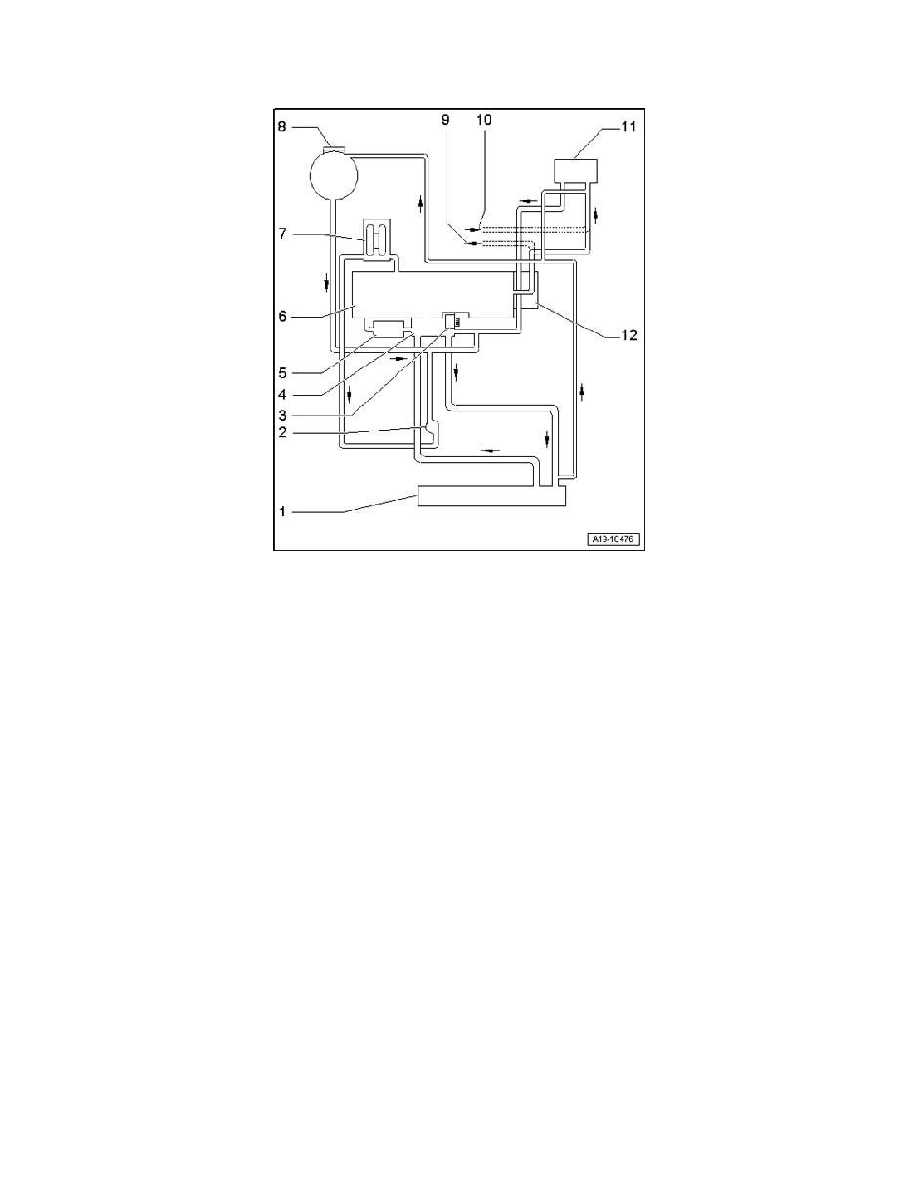

Coolant Hose Connection Diagram (02Q)

1 -

Radiator

2 -

After run coolant pump V51

3 -

Coolant pump

4 -

Coolant thermostat

5 -

Engine oil cooler

6 -

Cylinder head and cylinder block

7 -

Turbocharger

8 -

Coolant reservoir

^

With cap

^

Check pressure valve in cap.

9 -

To auxiliary heater

10 -

From auxiliary heater

11 -

Heater core

12 -

Coolant connection

Coolant Hose Connection Diagram (02E)
