Golf Mk1 Body Repair: Renew Rear Bumper Side Part - Scirocco
|
Renewing bumper covering - Golf, Jetta
Renewing rear bumper side part - Scirocco
|
 |
|
|

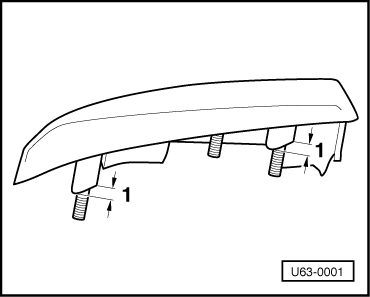

In vehicles up to chassis No. 534 2002 700, Part. No. 531 807 371 D/372 D Work secuence: → 1 = approx. 3mm 1 - File off bases for studs to form an approx. 3mm bevel in order to make contact sufaces for mudwing. |
 |
|
|
→ 1 = 53 mm 2 = 130 mm 3 = 12 mm 4 = plug 2 - Drill two holes - 6mm dia. - in side panel and seal the two existing holes with plugs - Part. No. 111 857 145 A-. |
