Golf Mk1

4 Cylinder Fuel injection Engine Mechanics (1.6L & 1.4L)
Removing and installing parts of fuel supply system
Checking fuel pump

Special tools, testers and auxiliary items

  • ◆ Remote control V.A.G 1348/3A with adapter cable V.A.G 1348/3-2.
  • ◆ Adapter set V.A.G 1594.
  • ◆ Multimeter V.A.G 1715.
  • ◆ Diode test lamp V.A.G 1527.
  • ◆ Current flow diagram.
  • ◆ Pressure tester V.A.G 1318.

U20-0072
  • ◆ Adapter V.A.G 1318/1.
  • ◆ Adapter V.A.G 1318/10.
  • ◆ Adapter V.A.G 1318/11.
  • ◆ Measuring container.

Test conditions

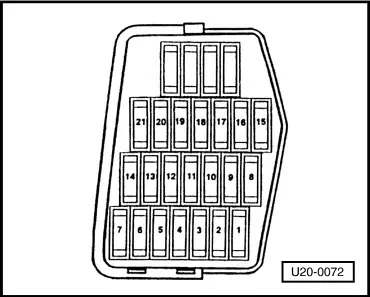

  • ● → Fuel pump fuse OK.
  • ● Battery voltage at least 11.5 V.
