• ‒ Remove toothed belt.
• ‒ Remove toothed belt sprocket (use counterhold 3099 to loosen fastening screw).
• ‒ Screw inner part of oil seal extractor 2085 two truns (approx. 3 mm) out of outer part an lock with knurled screw.

Vehicles ä 09.82

• ‒ Remove Woodruff key from crankshaft.
• ‒ To guide the oil seal extractor, screw fastening screw for toothed belt sprocket into crankshaft until it protrudes 20 mm.

Vehicles 10.82 ä

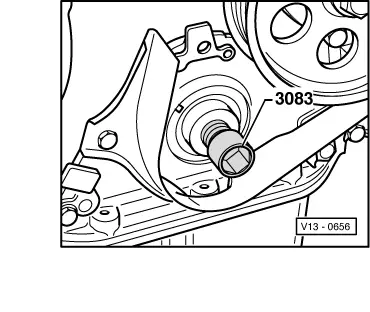

• ‒ → To guide the oil seal extractor, screw the cheesehead bolt from 3083 into the crankshaft as far as it will go.

All vehicles

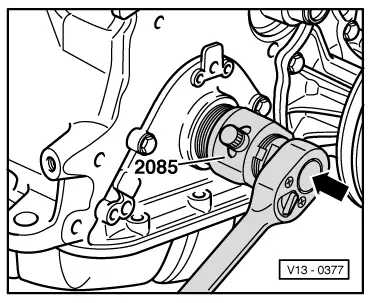

• ‒ → Lubricate threaded head of oil seal extractor 2085 with oil, place it in position and applying firm pressure screw it as far as possible into oil seal.
• ‒ Loosen knurled screw and turn the inner part against the crankshaft until the oil seal is pulled out.
• ‒ Clamp flats of extractor in a vice and remove oil seal with a pair of pliers.
• ‒ Slightly oil sealing lip and outer edge of the oil seal.

Vehicles ä 09.82

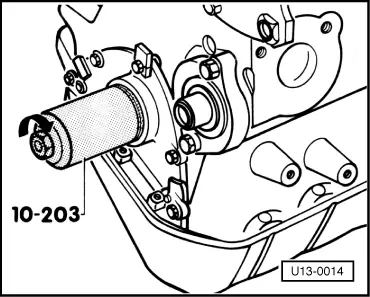

• ‒ → Place oil seal in position and press in 2 mm deep using the washer for the toothed belt sprocket.
• ‒ Install toothed belt (adjust valve timing) .

Vehicles 10.82 ä

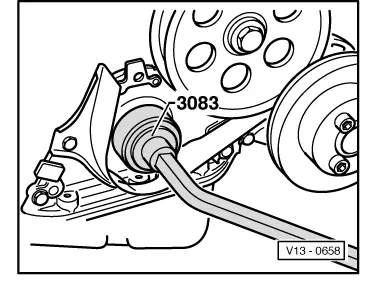

• ‒ → Position guide sleeve from 3083 on crankshaft journal and slip seal over guide sleeve.
• ‒ Press home seal with sleeve from 3083 and cheesehead bolt.
• ‒ Install toothed belt (adjust valve timing) => page 13-9 .
