Volkswagen Workshop Service and Repair Manuals > Golf Mk3 > Body | General body repairs | Trim, noise insulation | Door trims | Removing and installing door insulation film

Removing

–	Remove door trim → Chapter or → Chapter.

–	Remove clip upper parts -1--arrow-.

–	Press clip lower parts -2- from door using removal pliers -3392-.

Note

Check condition of clip lower parts and renew when installing, if necessary.

–	Push the securing clip out of the hole in the inner door panel.

–	Push the inner release handle towards the front of the vehicle out of the mounting holes.

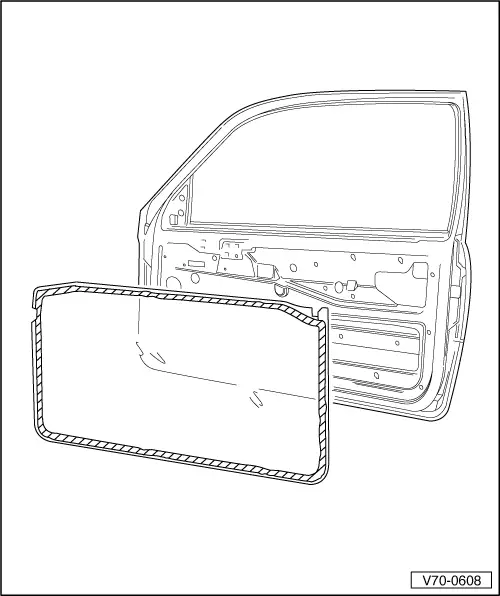

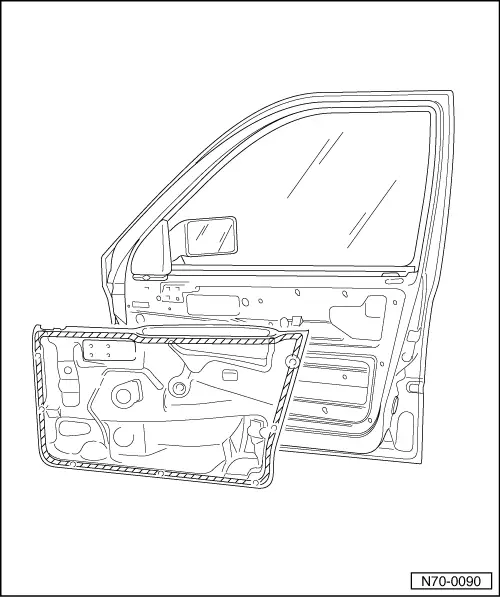

–	Pull off insulation foil around circumference in sections (each approx. 15 cm). When doing this, hold film as close as possible to the adhesive (shaded area).
