Golf Mk3

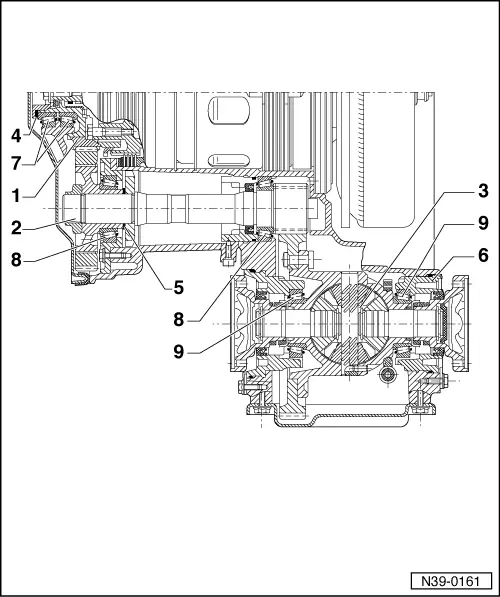

Adjusting final drive
Adjusting input gear
|
|
Determining shim The specified bearing preload is achieved if the bearing preload of 0.18 mm is deducted from the figure obtained from the measurement (dished washer + reading) of 2.50 mm. Example:
Insert axial needle bearing for input shaft before tightening socket head fastener. Installation position => Removing and installing input gear, Page 39-8 . |
