Golf Mk3
|

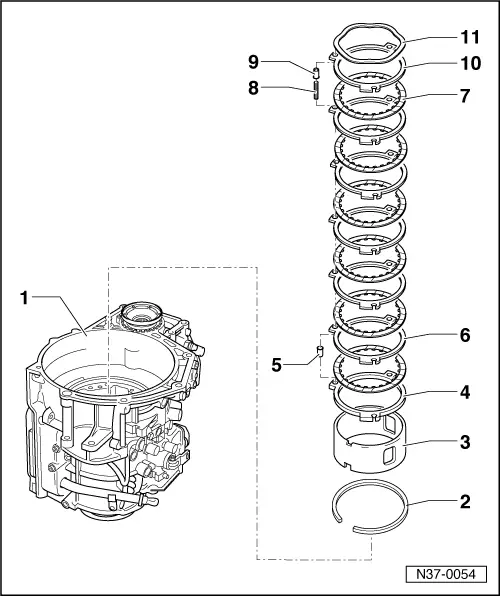

| 1 - | Gearbox housing |
| 2 - | Retaining ring |
| q | For support tube. |
| 3 - | Support tube -B2- |
| q | Length of -B2- with: |
| 4 inner plates “72.3 mm” |
| 5 inner plates “68.6 mm” |
| 6 inner plates “64.9 mm” |
| t | Quantity of inner plates -B1- → Chapter |
| t | Insert so that notch locates on wedge of freewheel. |
| 4 - | Outer plate -B2- |
| q | 3 mm thick |
| 5 - | Spring cap |
| q | Install after installing first outer plate |
| 6 - | Outer plate -B2- |
| q | Always install 2 mm thick outer plates |
| q | Quantity → Chapter |
| 7 - | Inner plate -B2- |
| q | Quantity → Chapter |
| 8 - | Spring |
| 9 - | Spring cap |
| q | Install before installing last outer plate. |
| 10 - | Outer plate -B2- |
| q | Do not install when adjusting -B2- |
| q | Two outer plates may be installed |
| 11 - | Corrugated washer |
| q | Do not install when adjusting -B2- |
