Golf Mk3

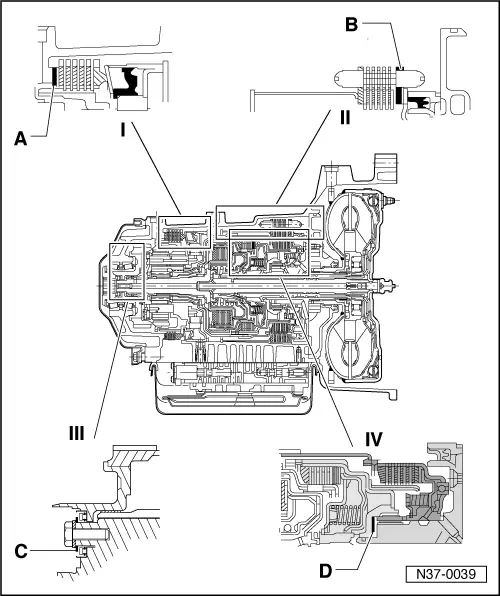

Overview - all planetary gearbox adjustments

Overview - all planetary gearbox adjustments

I - Reverse gear brake -B1-
t  A - Shim
t  Determining thickness ⇒ Adjusting reverse gear brake -B1- → Chapter
II - 2nd and 4th gear brake -B2-
t  B - Outer plate
t  Determining thickness, Adjusting 2nd and 4th gear brake -B2- → Chapter
III - Planet carrier
t  C - Shim.
t  Determining thickness ⇒ Adjusting planet carrier → Chapter
IV - Clutch play
t  D - Shim
t  Determining thickness ⇒ Adjusting clutch play between -K1- and -K2- → Chapter
