Adjusting differential

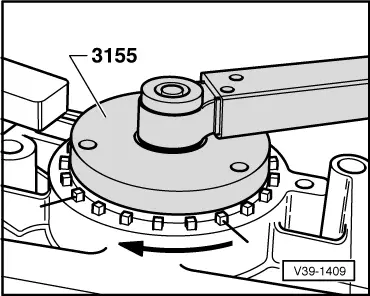

–	Tighten bearing body using slotted nut wrench -3155- against stop to 150 Nm and secure.

–	Tighten adjusting ring to 50 Nm and mark.

Note

When performing measurement, do not turn differential or the bearings will settle and the result of the measurement will be falsified.

–	Turn adjusting ring on by five locking lugs and secure so that the preload of the tapered roller bearings is set.
