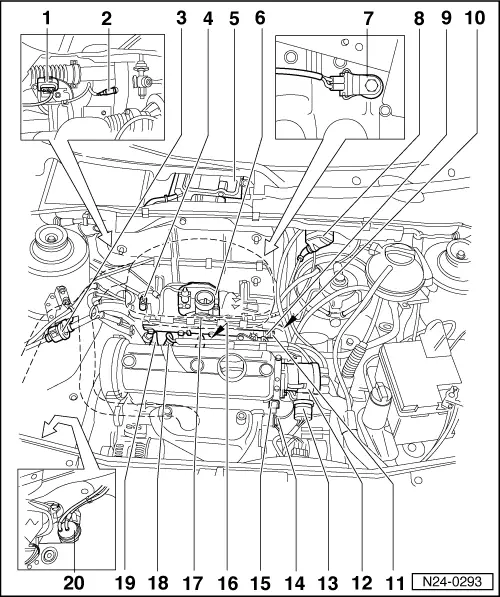

• Intake manifold pressure sender (G71)* with intake air temperature sender (G42)*
• ◆ Resistance values for intake air temperature sender
  , Fig. 2
• O ring
• ◆ Renew if damaged
• Intake manifold
• Throttle valve control part (J338)*
• ◆ Checking
• ◆ Components of the throttle valve control part (J338):
  Throttle valve positioner (V60), throttle valve potentiometer (G88), throttle valve potentiometer (G69) and idling switch (F60)
• If the control unit is replaced:
• ◆ Perform basic settings => Page 24-20

• O ring
• ◆ Renew if damaged
• 10 Nm
• Earth wire
• ◆ For throttle valve control part
• Supply hose
• ◆ Clip in lower intake manifold
• Return hose
• ◆ Clip in lower intake manifold
• To activated charcoal filter solenoid valve 1 (N80)
• ◆ Activated charcoal filter system

=> Repair group 20, removing and installing parts of the fuel supply system, removing and installing parts of the activated charcoal filter system

• Retaining clip
