Note:

For repairs to the clutch:

=> 4 and 5 Speed manual gearbox 020; Repair group 30; Servicing clutch

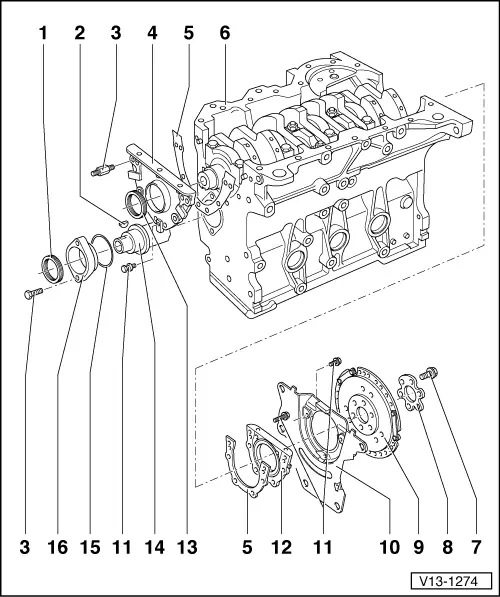

• Oil seal
• ◆ Remove to remove sealing flange
• ◆ Install with 10-203
• ◆ Lightly oil sealing lip
• Woodruff key
• ◆ Ensure tight fit

• 25 Nm
• Sealing flange
• Gasket
• ◆ Renew
• Cylinder block
• ◆ Removing and installing crankshaft
• ◆ Dismantling and assembling pistons and conrods
  => Page 13-33
• 60 Nm + 1/4 turn (90 °) further
• ◆ Renew
• Plate
• ◆ Observe fitting position

• Pressure plate/drive plate
• ◆ Removing and installing pressure plate =>Fig. 1
• ◆ Removing and installing drive plate
• Intermediate plate
• ◆ Must be located on dowel sleeves
• ◆ Do not damage/bend when assembling
• 10 Nm
• Sealing flange with oil seal
• ◆ Only renew complete
• ◆ Lightly oil sealing lip of oil seal

• Oil seal
• ◆ Renewing => Page 13-25
• Intermediate shaft
• ◆ First remove distributor
• ◆ Axial clearance max. 0.25 mm
• O ring
• ◆ Renew if damaged
• Sealing flange intermediate shaft

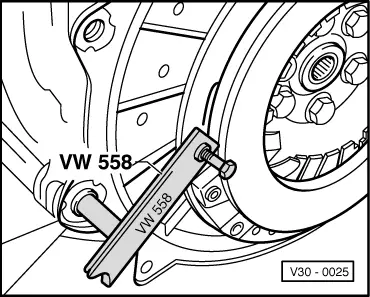

→ Fig.1     Removing and installing pressure plate
