Renewing engine carrier rubber mounting > < Assembly mountings

Aligning engine and gearbox for Golf Mk3 6-cyl fuel injection engine Mechanics

6-cyl. fuel injection engine Mechanics

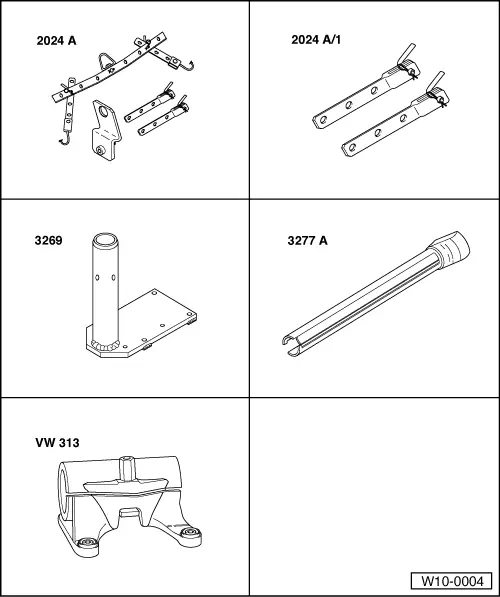

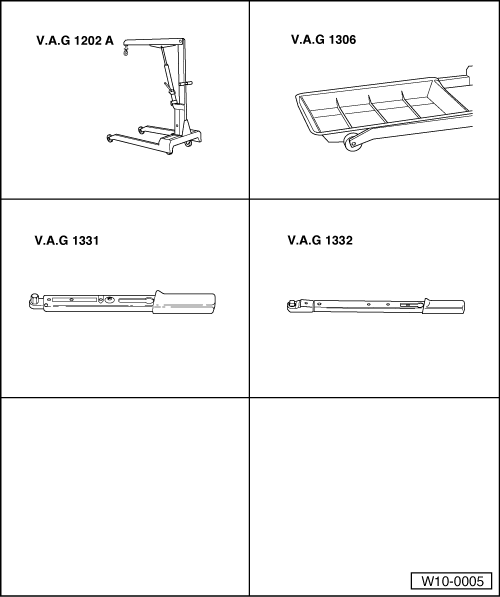

Removing and installing engine
Aligning engine and gearbox

N10-0010

Aligning is only necessary when the engine and gearbox have been removed and additionally the rubber mountings have been loosened at the assembly mounting and engine carrier.

  • ‒ → Loosen rear right assembly mounting -A- at engine and sub-frame.
  • ‒ Loosen rear left assembly mounting -B- at gearbox and sub-frame.

N10-0019
  • ‒ → Loosen front assembly mounting at engine carrier and console.
  • ‒ Align assembly mounting stress-free by rocking.
  • ‒ First tighten front and rear right assembly mountings, then rear left assembly mounting.
         Tightening torques ,
         Assembly mounting.
