The CD changer is located in the luggage compartment on the left side.

• ‒ Disconnect wiring harness connector on the back of the CD changer.

Removing:

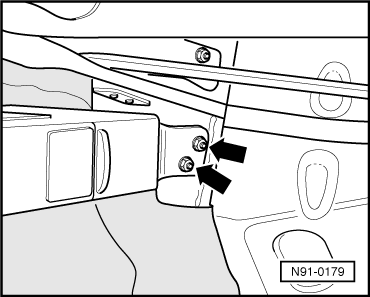

• ‒ → Unscrew securing nuts -arrows- on left side of CD changer.

• ‒ → Unscrew securing nuts -arrows- on right side of CD changer.

Tightening torque: 6 Nm

Installing:

Installation is carried out in the reverse sequence!

Removing and installing CD changer retainer

Removing:

• ‒ Unscrew the securing screws from bracket left and right on removed CD changer.

Tightening torque: 5 Nm

Installing:

Installation is carried out in the reverse sequence!

Note:

Only use screws with dimensions M5x8 with washer.
