Golf Mk3

Electrical system
Alternator with ribbed belt
4-Cylinder Diesel and petrol engines with power-assisted steering

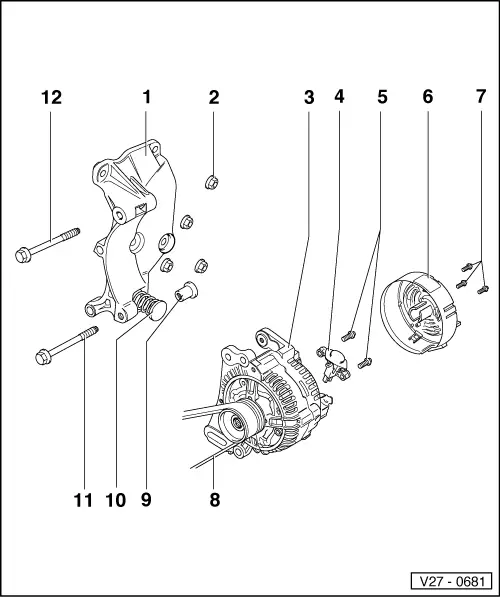

  • Bracket
  • Hexagon nut M8
    • ● 30Nm
  • Alternator
  • Voltage regulator
    • ◆ Removing and installing     => Items 7 , 6 , 5
    • ◆ Checking carbon brushes

V27-0681
  • Fillister/cross-head screw M4x25
  • End cap
  • Hexagon bolts M3
  • Ribbed belt
  • Internally threaded sleeve M8
  • Tensioning spring
  • Hexagon bolt M8x39
    • ● 25Nm
  • Hexagon bolt M8x85
    • ● 25Nm
