Distinguishing features of ABS Mark 20 IE
Distinguishing features of ABS Mark 20 IE

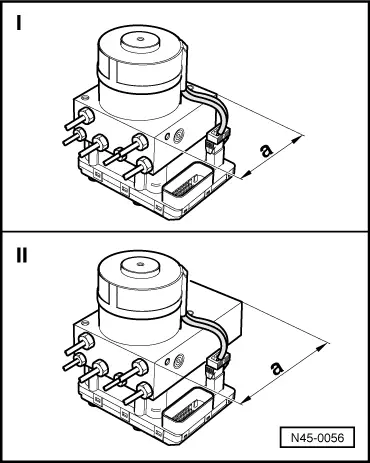

I - ABS - Mark 20 IE
Dimension a = 100 mm
II - ABS/EDL - Mark 20 IE
Dimension a = 130 mm
  N45-0056

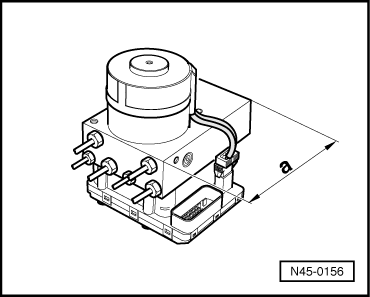

ABS/EDL/TCS - Mark 20 IE
Dimension a = 130 mm
  N45-0156
ABS/EDL/TCS/ESP - Mark 20 IE
Dimension a = 135 mm
1 - Control unit, 47-pin (bolted to hydraulic unit). Four contacts, each with a width of 4.8 mm, are located in the end of the connector with locking lug.
Furthermore the connection between the hydraulic unit and the control unit is routed internally.
  N45-0158
