Golf Mk4

ABS Mark 60
ABS Mark 60
With ABS Mark 60 the following variants are possible:
t  ABS
t  ABS/EDL
t  ABS/EDL/TCS
t  ABS/EDL/TCS/ESP

ABS layout in left-hand drive vehicle.
1 - Brake servo
2 - Hydraulic unit
3 -  - The hydraulic unit -2- and control unit -3- (47-pin) form one component. They can be separated only when removed. Two 4.8 mm wide contacts are located at each end of the connection.
The ABS brake system is divided diagonally. The servo-assistance is effected pneumatically, by the vacuum brake servo unit.
Vehicles 11.01 ►: the mechanical brake assist system (located in the brake servo) is available as an option. This can only be recognised via the part number.
The mechanical brake assist system cannot be repaired, the complete brake servo must be renewed.
Functional check of brake assist system in the brake servo → Chapter.
Models with ABS Mark 60 do not have a mechanical brake pressure regulator. Specially matched software in the control unit regulates the rear axle brake pressure distribution.
Malfunctions on ABS systems do not influence the brake system and servo. The conventional braking system remains functional even without ABS.
  N01-0497

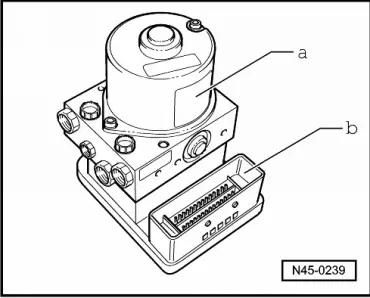

The hydraulic unit -a- and control unit -b- (47-pin) form one component. They can be separated only when removed.
New control units from the replacement parts service are not coded. They must be coded once installed
  N45-0239
