Removing and installing air conditioner magnetic couplingN25

Removing and installing air conditioner magnetic coupling -N25-

Special tools and workshop equipment required

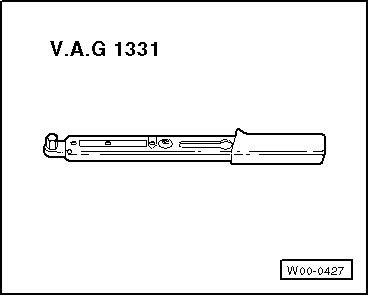

t	Torque wrench -V.A.G 1331/- (5...50 Nm)

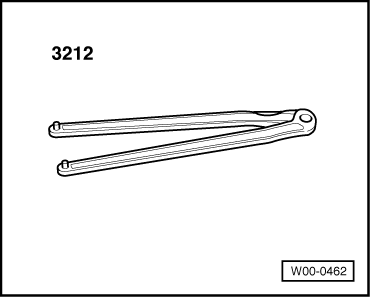

t	Pin wrench -VAS 3212-

Not illustrated:

t	Two-arm puller

t	Three-arm puller

t	Depth gauge

Note

t	It is not necessary to open the refrigerant circuit to remove and refit the air conditioning system magnetic coupling -N25-.

t	To remove poly V-belt → Rep. Gr.13.

t	For vehicles with diesel engines, remove charge air cooler → Rep. Gr.21
