Golf Mk4

Installing
Installing
  Note
t  The cable sheaths are colour coded.
t  When rotary knobs are turned, all flaps must audibly contact stop.
t  Check cables before installing; replace stiff or damaged cables.

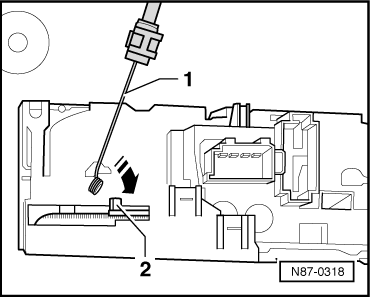

–  Bend wire ends of cables -1- and press onto lever of control -2--arrow-.
  N87-0318
–  Press cable for footwell/defroster flap, cable for temperature flap and cable for central flap -1- into locking device -2- until it engages.
Identification of footwell/defroster flap cable: left-hand drive: green; right-hand drive: black.
Identification of central flap cable: left-hand drive: yellow; right-hand drive: grey.
Identification of temperature flap cable: red left-hand drive: beige; right-hand drive: white.
  N87-0319
