Golf Mk4
Power transmission
5-speed automatic gearbox 09A
Automatic gearbox, gears, control
Renewing oil seal for selector shaft
Renewing oil seal for selector shaft
Renewing oil seal for selector shaft
Special tools and workshop equipment required
t

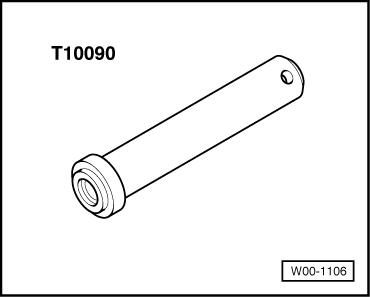

Thrust piece -T10090-
–
Remove multifunction switch -F125-
→ Chapter
.
–
Use a screwdriver to remove oil seal, taking care not to damage selector shaft when doing this.
–

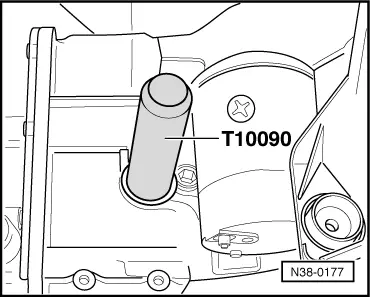

Drive in new seal to stop of thrust piece, taking care not to cant seal.
–
Install multifunction switch -F125-
→ Chapter
.
