Golf Mk4
| Removing and installing gearbox housing and selector mechanism |
| 1 - | Oval-head countersunk screw M 7×23, 15 Nm |
| q | Qty. 4 |
| q | Tensioning plate/deep groove ball bearing to gearbox housing |
| 2 - | Bolt, 20 Nm |
| q | For reverse gear shaft. |
| 3 - | Gearbox housing |
| q | Repairing → Chapter |
| q | From gearbox date 03 08 8, with additional threaded hole for reversing light switch. |
| q | Assembly of gearbox housing with additional threaded hole for gearboxes through date 02.08 8 → Fig.. |
| 4 - | Sealing cover, 50 Nm |
| 5 - | O-ring |
| q | Renew if present. |
| 6 - | Compression spring |
| q | Presses selector shaft and gearbox selector lever into gate for 3rd and 4th gear |
| 7 - | Selector shaft |
| q | Dismantling and assembling → Chapter |
| 8 - | Hexagon bolt M 8 x 35, 25 Nm |
| q | Qty. 2 |
| q | Screw in below locking bolt → Item. |
| 9 - | Reversing light switch and selector shaft locking bolt, 20 Nm |
| q | From gearbox date 03 08 8, reversing light switch and locking bolt are separate components → Fig.. |
| q | Coat with sealant -AMV 188 200 03-. |
| 10 - | Seal |
| q | Renewing → Chapter |
| 11 - | Retaining ring |
| q | Holds tapered ring, thrust washer and spring in position when flange shaft is removed. |
| 12 - | Tapered ring |
| q | With grooves to engage in thrust washer |
| q | Installation position: taper towards differential cage |
| 13 - | Thrust washer |
| q | Installation position: shoulder faces spring, lugs face tapered ring |
| 14 - | Compression spring |
| 15 - | Flange shaft |
| q | Removing and installing → Chapter |
| 16 - | Hexagon socket head bolt, 25 Nm |
| 17 - | Hexagon bolt M 8 x 52, 25 Nm |
| q | Qty. 12 |
| 18 - | Speedometer drive securing bolt, 5 Nm |
| 19 - | Retainer |
| 20 - | Speedometer drive |
| 21 - | O-ring |
| q | Always renew |
|
|

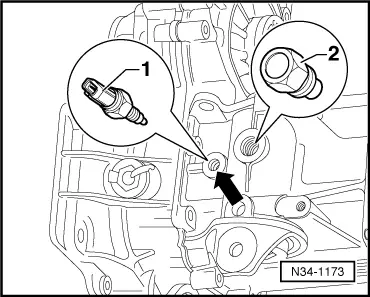

| Reversing light switch -1- | 25 Nm |
| Locking bolt -2- | 40 Nm |
|

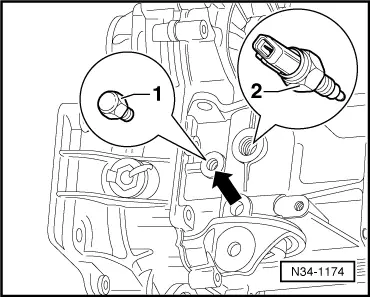

| Reversing light switch -2- | 25 Nm |
| Hexagon head bolt M 12 x 1.5 -1- | 25 Nm |
