Golf Mk4

Fine adjustment
Fine adjustment
l  With gearbox in neutral, selector lever must rest in gate for 3rd and 4th gear.

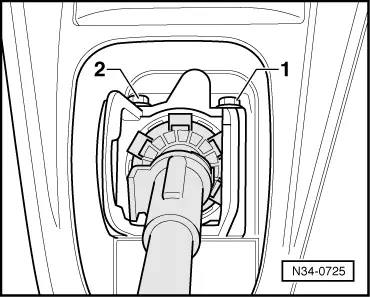

–  Loosen bolts -1- and -2- only enough that stop remains in new position during adjustment.
–  Engage 1st gear.
–  Eliminate play from selector mechanism by carefully pushing selector lever to left.
  N34-0725

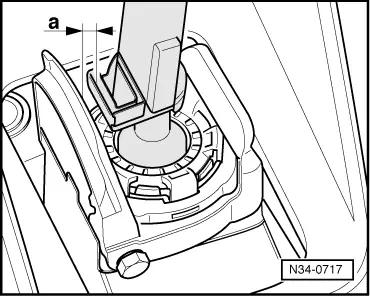

–  Attain dimension -a- (2.0 mm) by carefully adjusting stop.
  N34-0717

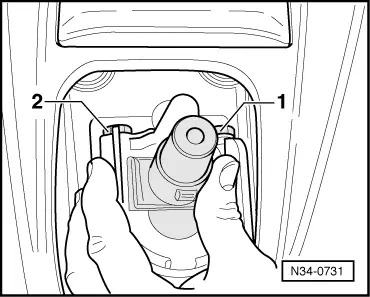

–  Tighten bolts -1- and -2- again in this position. Hold stop and selector lever in correct position when doing this.
  N34-0731
