Functional check
Functional check
l  With gearbox in neutral, selector lever must rest in gate for 3rd and 4th gear.
–  Operate clutch.
–  Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection then continue as follows:
–  Engage 1st gear.
–  Eliminate play from selector mechanism by carefully pushing selector lever to left.

l  Distance -a- must then be 2.0 mm.
–  If this is not the case, perform fine adjustment → Chapter.

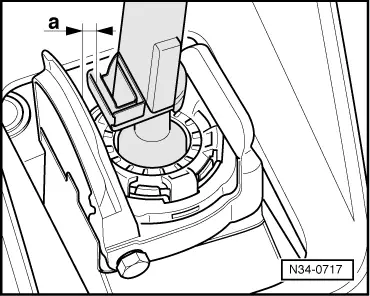

  N34-0717
