Note:

Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.

• Circlip
• ◆ Removing and installing
  =>Fig.1
• Bush
• Spring
• Bush
• Torx screw, 5 Nm
• Cover plate
• Damper
• Bearing shell
• Gear stick guide

• Damping washer
• Gasket
• ◆ Between selector housing and floor
• ◆ Self-adhesive
• ◆ Bond to gear stick housing
• Gearbox selector lever
• Damper
• Selector housing
• Bush
• Bolt, 25 Nm
• Fulcrum pin
• Guide bush
• Spring
• ◆ Installing => Fig. 2
• Gate selector bracket

• Torx screw, 5 Nm
• Base plate
• ◆ Open tabs to remove
• ◆ Renew
• Lock washer
• Gate selector cable
• ◆ On gate selector bracket
• ◆ Installation position
• Gear selector cable
• ◆ Press onto gear stick guide
• ◆ Installation position => Page 34-1
• Hexagon nut, 25 Nm
• ◆ Qty. 2
• Bush
• ◆ Only fits in one position
• Lock washer

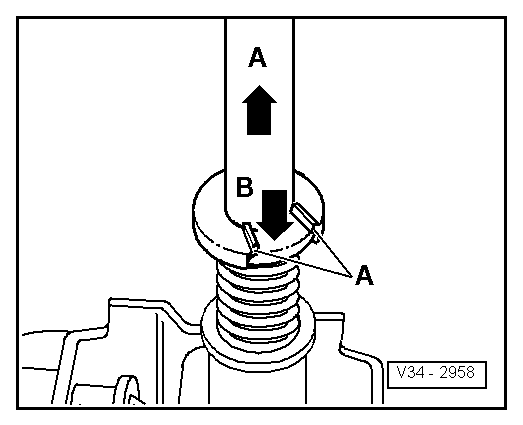

→ Fig.1     Removing and installing circlip

• ‒ To remove and install the circlip pull gear stick in arrow direction -A- and at the same time push down spacer bush onto stop with a screwdriver in arrow direction -B-.

Notes:

• ◆ Ensure spacer bush is not canted when pressing down.
• ◆ Mounting slot for circlip must be visible.
• ◆ Carefully relieve spring tension.

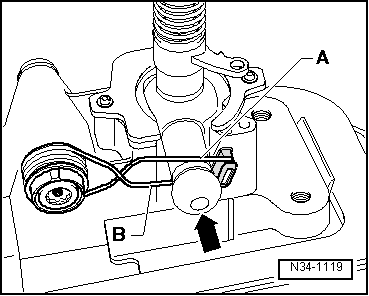

→ Fig.2 Installing spring

• ‒ Insert spring so that the spring extension -A- lies above pin (arrow).
• ‒ Then pull spring extension -B- down so that it reaches below pin (arrow).
