Golf Mk4

Checking ATF level and topping up

Checking → ATF level and topping up
Observe these notes as well.
t  About this workshop manual → Chapter
t  About ATF → Chapter
t  About “filler pipe” → Anchor

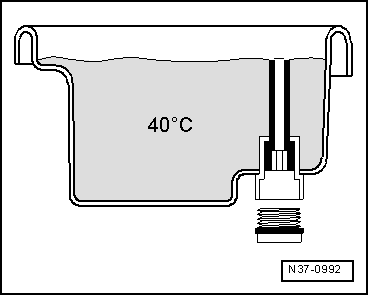

  N37-0992

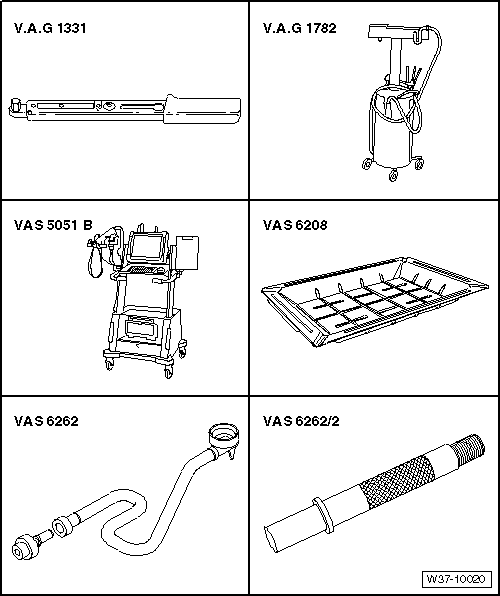

Special tools and workshop equipment required
t  Drip tray -V.A.G 1306- if no used oil collection and extraction unit -V.A.G 1782- is available
t  Use adapter for oil filling -VAS 6262- with -VAS 6262/2-
t  Other Volkswagen testers may be used as well → Chapter.

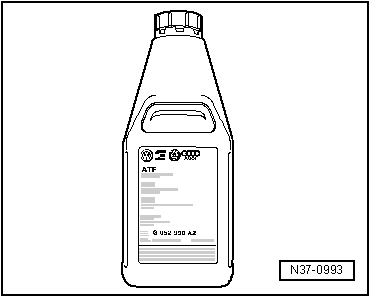

If → ATF must be added, use → ATF as a replacement part.
  N37-0993

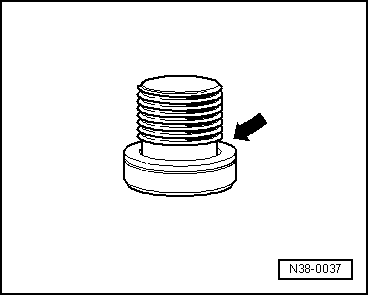

–  If → ATF level is checked, oil seal -arrow- on → ATF inspection plug must always be renewed.
  N38-0037
