Golf Mk4

Draining and filling ATF
Draining and filling → ATF

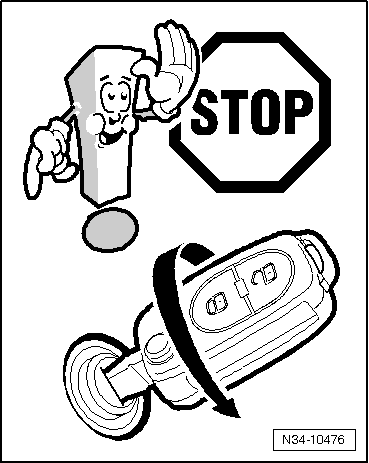

–  Switch off engine.
  N34-10476
–  Remove ATF inspection plug from pan -arrow-.
  N37-0189

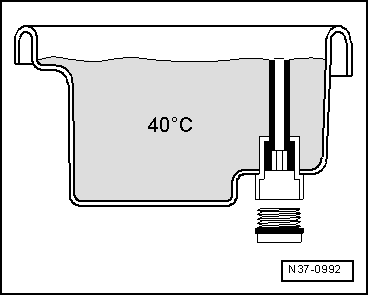

–  Remove overflow pipe through inspection hole.
–  Drain ATF.
–  Install overflow pipe.
  N37-0992

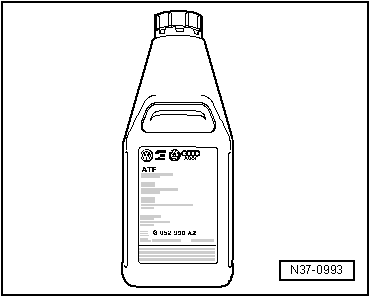

If ATF must be added, use ATF as a replacement part.
–  Fill with approx. 3 litres of ATF through filler pipe.
–  Screw in plug hand-tight.
–  Then start engine and shift through all selector lever positions with vehicle stationary.
–  Finally, check ATF level and top up → Chapter.
  N37-0993
