Golf Mk4
Power transmission
Automatic gearbox 01M
Automatic gearbox, gears, control
Removing and installing valve body / ocedure_for_removing_and_installing_valve_body/">Procedure for removing and installing valve body

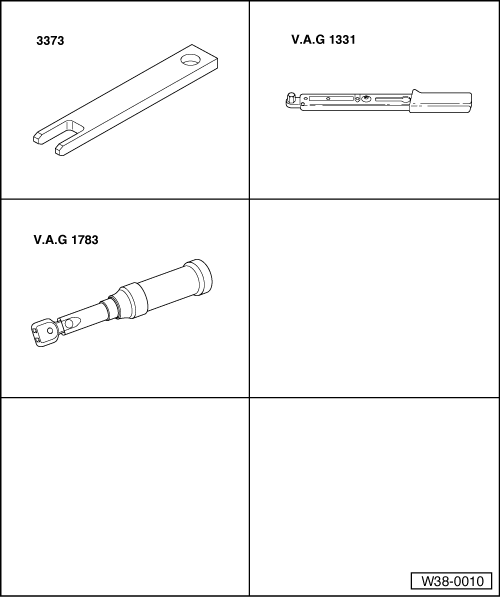

Removing
Removing
Removing
–
Observe general repair instructions
→ Chapter
.
–
Move selector lever to position “1”.
–
Remove
t
Sump
→ Chapter
t
ATF strainer
→ Chapter
t
If necessary, conductor strip
→ Chapter
–
If conductor strip remains on valve body, remove upper connector and
–
Remove cable bushing
-1-
.
–
Remove only securing bolts
-arrows-
.
Spool valve
-1-
remains in → valve body when → valve body is removed.
–
Pull spool valve out just until it is possible to unhook the operating rod
-2-
.
The spool valve is very
“sensitive”
. Even the slightest damage will lead to faults in operation.
–
Therefore, always push spool valve into valve body, secure against falling out and never interchange.
–
Detach → valve body carefully from gearbox.
–
Pull freewheel plug
-arrow-
out of gearbox housing.
