Golf Mk4

Removing and installing hydraulic bonded rubber bush

Removing and installing hydraulic bonded rubber bush

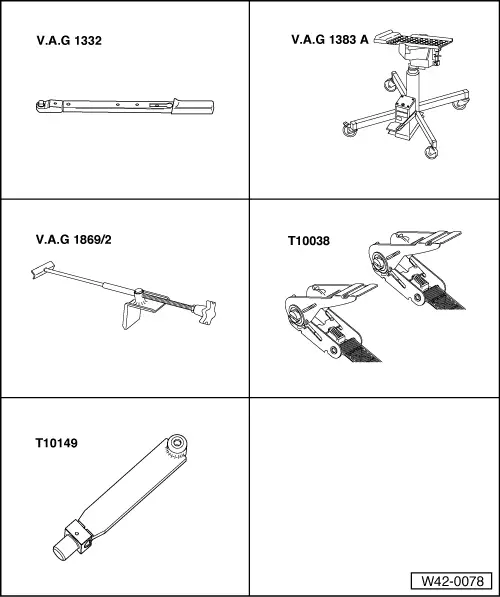

Special tools and workshop equipment required
t  Torque wrench -V.A.G 1332-
t  Engine and gearbox jack -V.A.G 1383 A- with universal gearbox support -V.A.G 1359/2-
t  Brake pedal actuator -V.A.G 1869/2-
t  Tensioning strap -T10038-
t  Support -T10149-
t  Hydraulic press -VAS 6178-
t  Foot pump -VAS 6179-
t  Assembly tool -VAS 6180-

Once hydraulic bonded rubber bushes have been removed, only “conventional” bonded rubber bushes may be installed.
Both sides of the rear axle must be renewed. Mixed installation is not permissible.
