Golf Mk4

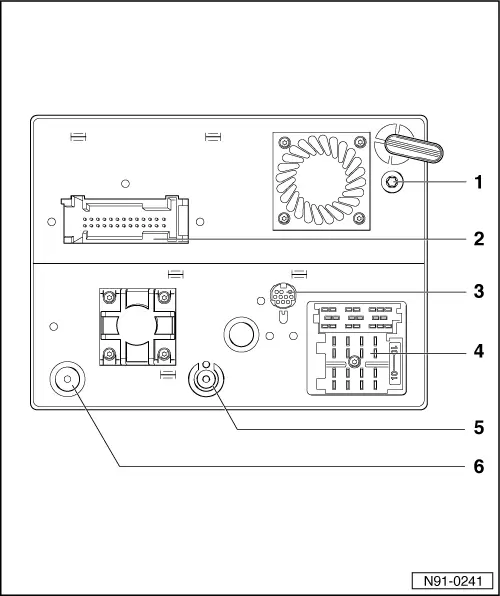

| Overview of radio navigation system connections |
| 1 - | Aerial connection for navigation system |
| 2 - | 26-pin connector for navigation sensors |
| Chamber assignment → Chapter |
| 3 - | RGB connection (Video) |
| Contact assignment from → Chapter |
| 4 - | Multi-pin connectors I, II, III |
| Contact assignment from → Chapter |
| 5 - | Aerial selection connection (diversity) |
| Only available on radio navigation system ► 10.00 |
| This connection is not used. |
| 6 - | Radio aerial connection |
