| Switch off ignition and all electrical consumers and remove ignition key. |
| –
| Carefully pull spray jet assembly out of bumper cover and hold it securely. |
| –
| Unclip cover cap from spray jet holder. |
| –

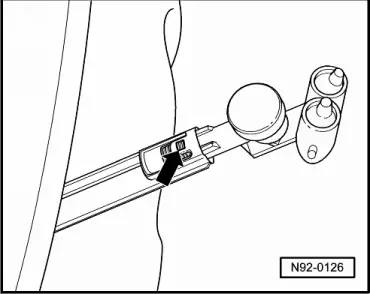

| Lift securing clip -arrow- slightly using a small screwdriver and pull spray jet assembly off pop-up cylinder. |
Note | The degree to which the cover cap of the spray jet is pulled down onto the bumper cover can be adjusted using the clips on the washer spray jet assembly. If the washer spray jet assembly is not pulled in far enough, the cover cap will not seat correctly. If the washer spray jet assembly is pulled in too far, the cover cap and the bumper cover could be pushed out of shape. |
| –
| Push washer spray jet assembly in pop-up cylinder until it engages. |
| –
| Fit cover cap on spray jet holder and allow pop-up cylinder to retract. |
| –
| Check the cover cap is seated correctly on the bumper cover. |
| –
| If necessary, adjust seat of cover cap by pushing washer spray jet assembly in higher or lower position on pop-up cylinder. |
| –
| On completion of installation work, bleed headlight washer system → Chapter. |
|
|
|
