Golf Mk5

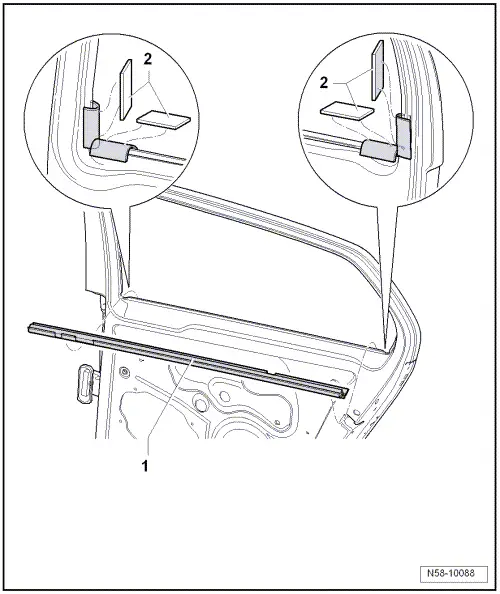

Assembly overview - door inner part

Assembly overview - door inner part
  Note
The right side is shown. The left side is similar.
1 - Window slot seal
2 - Insulation
q   Qty. 4
q   20 mm x 40 mm, commercially available textile adhesive tape.
