Volkswagen Workshop Service and Repair Manuals > Golf Mk5 > Brake systems | Brakes, hydraulics, regulator, servo | Repairing rear brake caliper

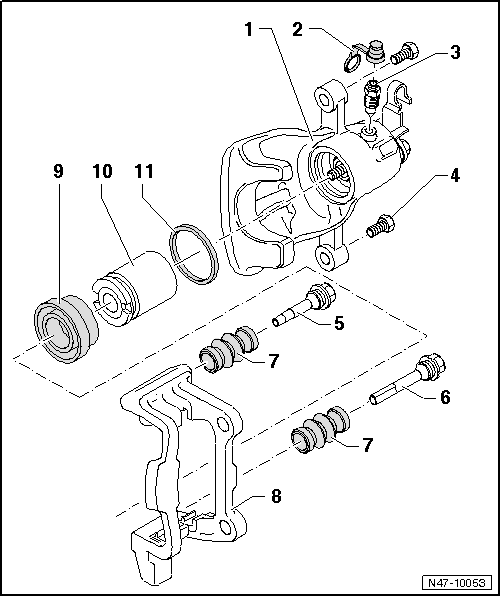

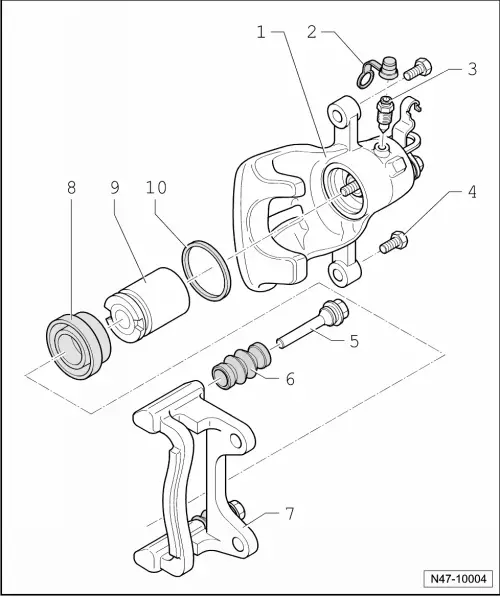

Removing

Special tools and workshop equipment required

t	Resetting and removal tool -T 10165-

t	Removal wedge -3409-

–	Screw piston out of brake caliper by turning thumb wheel anti-clockwise.

Apply resetting and removal tool so that collar of tool is resting on piston.

t	If pistons are difficult to move, a 13 mm open-end spanner can be used on intended flats -arrow A-.

–	Remove seal using wedge 3409.
