Transporting gearbox and securing to assembly stand
Transporting gearbox and securing to assembly stand
Always secure heavy parts for transport.
Keep in mind that there is oil in the gearbox. Do not turn gearbox with breather downwards during transport or while on repair stand. Oil will run out.

Transporting gearbox

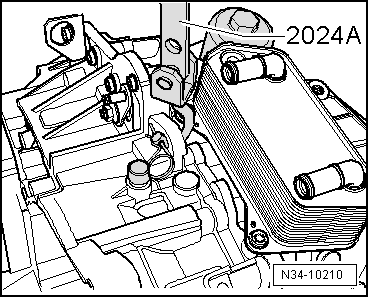

–  Use appropriate lifting tools, for example part of lifting tackle -2024 A- and shackle -10 - 222 A /12- (not illustrated).
  N34-10210

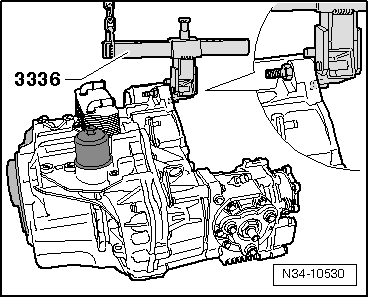

Gearbox may also be lifted with gearbox lifting tackle -3336-.
  N34-10530
Example: securing four-wheel drive gearbox to assembly stand.
  N30-10076
Example: securing front-wheel drive gearbox to assembly stand.
  N34-10529
