Checking adjustment of assembly mountings (engine/gearbox mountings)

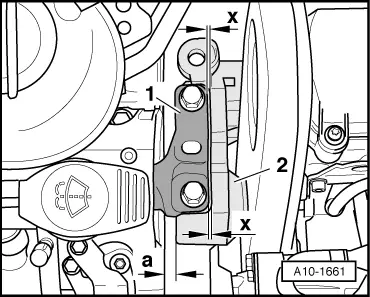

There must be a distance -a- of at least 10 mm between engine support and longitudinal member (right side).

The side surface of the engine support -2- should be located parallel to the support arm -1-.

–	If the conditions are not met, the assembly mountings must be adjusted → Chapter.
