Golf Mk5

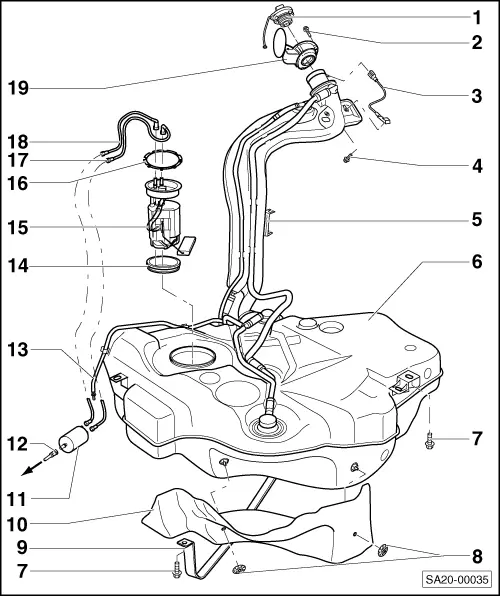

| Assembly overview - fuel tank |
| 1 - | Cap |
| q | Renew if damaged |
| 2 - | Securing bolt |
| 3 - | Earth connection |
| q | Check for secure seating |
| 4 - | Bolt |
| q | 10 Nm |
| 5 - | Cable guide |
| 6 - | Fuel tank |
| q | When removing, support using engine-/gearbox jack -V.A.G 1383/A- |
| q | Removing and installing → Chapter |
| 7 - | Bolts |
| q | 25 Nm |
| q | Renew |
| 8 - | Clamping washer |
| 9 - | Securing strap |
| 10 - | Heat shield |
| 11 - | Fuel filter |
| q | Fitting position: arrow indicates direction of flow |
| 12 - | Supply line |
| q | To fuel rail |
| q | Check for secure seating |
| 13 - | Breather line |
| q | Clipped onto side of fuel tank |
| q | Check for secure seating |
| 14 - | Seal |
| q | Renew if damaged |
| q | When installing, insert seal dry into fuel tank opening |
| q | Moisten with fuel only when installing flange |
| 15 - | Fuel delivery unit |
| q | Removing and installing → Chapter |
| q | If fuel delivery unit was replaced, adapt the engine control unit to the fuel pump → Vehicle diagnosis, testing and information system VAS 5051 |
| q | Checking fuel pump → Chapter |

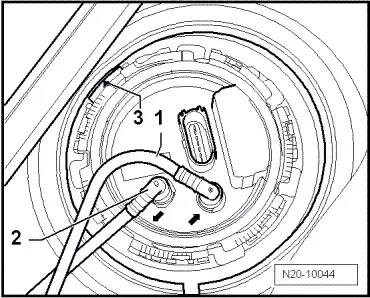

| q | Note installation position on fuel tank → Fig. |
| q | With fuel gauge sender -G- |
| q | Removing and installing fuel sender → Chapter |
| q | Clean strainer if soiled |
| 16 - | Locking ring |
| q | 110 Nm |
| q | Check for secure seating |
| q | Remove and install using wrench -T10202- |
| 17 - | Supply line |
| q | Black |
| q | Clipped onto side of fuel tank |
| q | Check for secure seating |
| 18 - | Return line |
| q | Blue |
| q | Clipped onto side of fuel tank |
| q | Check for secure seating |
| 19 - | Tank flap unit |
| q | With rubber cup |
| q | Removing and installing → General body repairs, exterior; Rep. Gr.55 |
|
|
