Golf Mk5

Checking function and voltage supply (engine codes CBTA, CBUA, BGP, BGQ)
Checking function and voltage supply (engine codes CBTA, CBUA, BGP, BGQ)
l  Fuel pump relay -J17- OK
l  Battery voltage at least 11.5 V
l  Fuse for fuel pump OK. Fuse assignment → Current flow diagrams, Electrical fault finding and Fitting locations
  Note
Function of fuel pump is checked using final control diagnosis.

–  Connect vehicle diagnosis tester as follows:
–  Push diagnosis cable connector onto diagnosis connection in driver footwell.
–  Switch on ignition.
–  Press buttons on display one after the other for Vehicle self-diagnosis, Engine electronics and Final control diagnosis.
–  Press right arrow button ► on display to initiate actuation of fuel pump.
The fuel pump must now start up.
–  Switch off ignition.
If fuel pump does not run:
–  Remove bench seat → General body repairs, interior; Rep. gr.72.
  N01-0590
–  Remove cover from fuel delivery unit.
  A20-1206
–  First check that the connector -arrow- is fitted securely by pulling the connector without pressing the catch. If connector was not inserted correctly, repeat functional check of fuel pump.
–  Now pull off connector.
–  Check the contacts on the connector and on the fuel delivery unit for damage.
  N20-10623

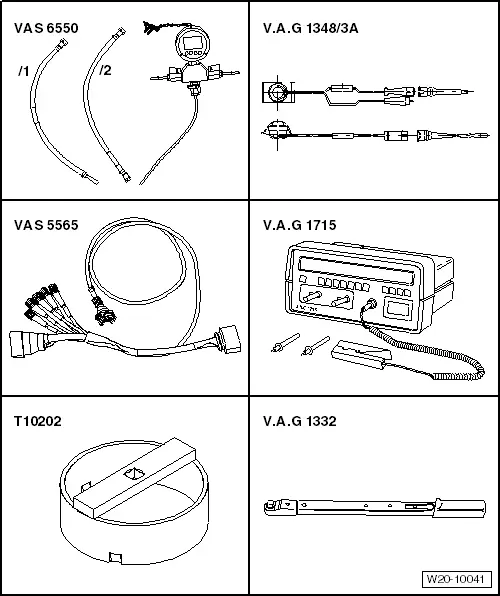

–  Connect test instrument adapter/DSO (5-pin) -VAS 5565- to connector and fuel delivery unit.
–  Connect multimeter -V.A.G 1526D- to cables -1- and -5- of test instrument adapter/DSO (5-pin) -VAS 5565-.
–  Initiate final control diagnosis again and measure voltage at fuel pump.
l  Specification: approx. 2 V less than battery voltage.
Voltage supply not OK:
–  Locate and eliminate open circuit referring to current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Voltage supply OK:
  WARNING
Fuel supply line is pressurised. Wear eye protection and protective clothing to avoid possible injury and skin contact. Before loosening hose connections, wrap a cloth around the connection. Then release pressure by carefully pulling hose off connection.
  N20-10423
–  Pull fuel lines -1- and -2- off flange. Separate push-on couplings → Chapter.
  Note
On vehicles with auxiliary heater the connector and the fuel line of the metering pump -V54- must also be separated.
  N20-10624
–  Open locking ring using wrench -T10202-.
–  Check that electrical wires between flange and fuel pump are connected.
If no open circuit can be found:
–  Fuel pump defective, renew fuel delivery unit → Chapter.
  N20-10625
